• Input ranges: 2.4VDC to 5.5VDC
• Non-isolated output adjustable from 0.7525V to 3.63V
• Efficiency up to 95%
•  Able to drive 1000µF ceramic capacitive loads
• Optional sequence / tracking feature supported

		OKX-T/10 & T/16-W5		OKY-T/10 & T/16-W5
Data Sheets
Request a Sample
Request a Quote

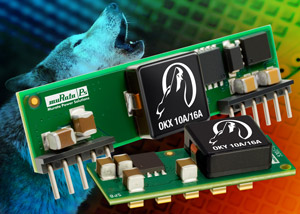

The Okami range of non-isolated Point-of-Load (PoL) DC/DC power converters from Murata Power Solutions has been expanded with the addition of 10A and 16A models in both surface mount (SMT) and through-hole SIP formats. The new modules are fully compatible with DOSA specifications and support the latest generation FPGAs, ASICs and DSPs that require high load currents in low input voltage environments.

The 10A and 16A Okami OKY (SMT) and OKX (SIP) series accept an input voltage range of 2.4VDC to 5.5VDC.  All models have a programmable output voltage from 0.7525V to 3.63VDC. The new devices are based on a fixed-frequency synchronous buck converter switching topology to deliver high power conversion efficiency with exceptional thermal derating performance.  Operating temperature range is –40ºC to +85ºC.

Able to drive up to 1000µF ceramic capacitive loads, Okami OKY and OKX 10A and 16A DC/DC converters are available with either positive or negative on/off control. They can also be specified with or without the sequence / tracking feature. All models supports under voltage lock out (UVLO), output short-circuit protection, over-current and over-temperature protections.

Overall dimensions of the surface-mount OKY modules are 33.0mm x 13.5mm x 8.4mm (1.3in. x 0.53in. x 0.33in.) and the thru-hole OKX measures 50.8mm x 12.7mm x 9.4mm (2.0in. x 0.5in. x 0.37in.). All of the new models are designed to meet the requirements of UL/EN/IEC 60950-1 safety and are RoHS-6 compliant.

For price information, send an email to webmaster@murata-ps.com. Delivery is from stock to 8 weeks.
