    News Release

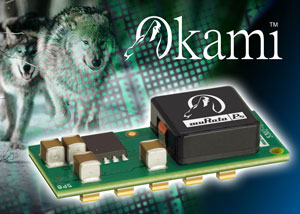

    OKY-T/10 & T/16-D12 Series

    New 12V input SMT modules added to OKAMI™ family of DOSA-compliant PoL DC/DC converters
    • Available with 10A or 16A Output current
    • Programmable non-isolated output voltage from 0.75V to 5.5V
    • Able to support up to 1000µF output ceramic capacitance
    • High efficiency up to 94.5%
    • Wide input voltage range 8.3VDC to 14VDC
    • Optional Sequence/Tracking feature (OKY2 models)
    Data Sheet
    Request a Sample
    Request a Quote
    May 2009

    Murata Power Solutions has added eight new 12V input models to its DOSA compliant OkamiT range of non-isolated point-of-load (PoL) DC/DC converters. The latest additions comprise four 10A and four 16A output current surface mount (SMT) modules that provide an ideal drop-in replacement for other DOSA-compliant parts in space constrained designs that require high density, high efficiency power solutions.

    All OKY-T10 and -T16 modules are available with either positive or negative on/off logic control. The OKY2-T10 and OKY2-T16 models offer the same choice but also feature a sequence/tracking function wherein the output voltage will track an input signal to enable power sequencing.

    Common to all models is a wide input voltage range of 8.3VDC to 14VDC and a programmable, output voltage from 0.75V to 5.5VDC, which simplify the inclusion of these modules into a wide range of equipment designs. Typical applications include any system using latest generation IC's such as DSP, FPGA and ASIC.

    The new OKAMI modules achieve high power conversion efficiency of up to 94.5%, have outstanding thermal derating performance and are able to support up to 1000µF ceramic output capacitance. The compact design incorporates over-temperature and short-circuit protection features with pre-bias immunity.

    Operating temperature range is -40°C to +85°C and the modules have dimensions of 33mm (1.30in.) x 13.5mm (0.53in.) x 8.4mm (0.33in.). The modules are designed to meet UL/EN/IEC 60950-1 safety approvals and FCC emissions certifications.


    Further editorial information from:
    John Sutherby, Marketing Communications Director
    Murata Power Solutions - Power Electronics Division
    Tel: 1+ 508.339.3000 x117 Fax: 1+ 508.339.6356
    E-mail: jsutherby@murata-ps.com

    Contact details for publication:
    Murata Power Solutions, Inc.,
    Power Electronics Division
    11 Cabot Boulevard
    Mansfield, MA 02048-1151, USA
    Tel: 1+ 508.339.3000 Fax: 1+ 508.339.6356
    Product URL: www.murata-ps.com
    e-mail: muratapr@murata-ps.com

    About Okami

    Okami, Japanese for "wolf", is a registered CTM trademark and may be a registered trademark in certain other countries for Murata Power Solutions' new breed of DOSA PoL DC/DC converters. For more information on the Okami family, please visit www.murata-ps.com/okami



    About Murata Power Solutions

    Murata Power Solutions (www.murata-ps.com) is headquartered in Mansfield, Massachusetts, with over 1,300 employees, and locations in the USA, Canada, England, France, Germany, Singapore, Japan and China. Murata Power Solutions designs, manufactures and distributes DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Panel Meters, and offers these products in custom, standard and modified-standard variations. Murata Power Solutions’ products are typically used within electronic applications serving major global market sectors including telecommunications, computing and industrial controls.

    Murata Power Solutions is a division of Murata Manufacturing Co., Ltd., a worldwide leader in the design, manufacture and sale of electronic components and power supply modules. Murata’s devices are found in a wide range of applications including consumer and automotive electronics, and wireless devices. The company has employees and manufacturing facilities throughout the world.

    Follow Murata Power Solutions on Twitter: @murataps



    May 2009   Ref. MPS372A
