NCS6 Series
Wide input voltage range and industry standard footprint simplify design-in of 6W single output DC/DC Converters
- 4:1 wide range voltage input (either 12V or 48V nominal)
- Metal case and encapsulated design support excellent thermal and EMI performance
- High power density of 0.94W/cm3
| Data Sheets |
|
 |
| Request a Sample |
|
 |
| Request a Quote |
|
 |
June 2009

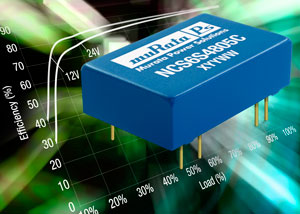

Murata Power Solutions has introduced a new range of isolated 6W, wide 4:1 input, single output DC/DC Converters suited for use in a wide range of applications including telecommunications, battery powered systems, process control and distributed power systems. The NCS6 Series is available with input voltage ranges of 9-36V (12V nominal) and 18-75V (48V nominal) both with under voltage lock out. The new modules are housed in industry-standard packages that allow them to be used as drop-in replacements in existing designs.
Single output voltages of 3.3, 5, 12 and 15V are available and the NCS6 series achieves a power density of 0.94W/cm3 with efficiency levels from 73%. A metal case helps the new DC/DC Converters achieve high levels of EMI shielding and the encapsulated design gives excellent thermal performance.
The NCS6 series specifies 1.5kVDC isolation and has typical load line regulation of 0.006%. Low noise performance and a design that overcomes the need for electrolytic capacitors helps to further simplify their inclusion in customer designs.
Overall dimensions of the new modules are 1.26in. (32mm) x 0.787in. (20mm) x 0.394in. (10mm) and operating temperature range is -40°C to +85°C. All models in the range are RoHS compliant and use UL 94V-0 rated package materials.
|
