    News Release

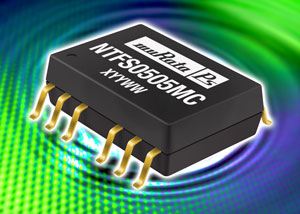

    NTF Series

    Integrated design surface mount 1W DC/DC converters bring benefits of IC-style packaging
    • Surface mount IC style package with 0.7W/cm3 power density
    • Choice of three wide range input voltages
    • Tightly regulated 5V, 12V or 15V output
    • Voltage trim feature
    Data Sheets
    Request a Sample
    Request a Quote
    March 2009

    NTF series 1W surface mount isolated DC/DC Converters from Murata Power Solutions are integrated, IC-style true surface mount packages that help simplify their inclusion in customer designs. The wide input range devices are ideal for use in battery powered products plus a wide range of other applications, especially those where high volume is expected.

    Comprising nine models with efficiency levels up to 70%, the NTF series is available with a choice of three wide range input voltages of 4V - 6V (nominally 5V), 9V - 15V (nominally 12V) and 18V - 36V (nominally 24V). Tightly regulated output voltages of 5V, 12V or 15V are offered. All devices provide 1kVDC isolation and include a voltage trim feature.

    The NTF series employs leadframe technology and transfer moulding techniques to bring all the benefits of IC packaging to hybrid circuitry. Co-planarity of the lead positions is based upon IEC 191-6:1990 and package materials are UL 94V-0 rated. Overall dimensions of 0.7in.(17.78mm) x 0.5in. (12.70mm) x 0.228in. (5.80mm) give the NTF series a power density of 0.7W/cm3.

    Devices in the RoHS compliant series have an operating temperature range of -40°C to +85°C and have a mean time to failure (MTTF) of up to 1.4 million hours.


    Further editorial information from:
    John Sutherby, Marketing Communications Director
    Murata Power Solutions - Power Electronics Division
    Tel: 1+ 508.339.3000 x117 Fax: 1+ 508.339.6356
    E-mail: jsutherby@murata-ps.com

    Contact details for publication:
    Murata Power Solutions, Inc.,
    Power Electronics Division
    11 Cabot Boulevard
    Mansfield, MA 02048-1151, USA
    Tel: 1+ 508.339.3000 Fax: 1+ 508.339.6356
    Product URL: www.murata-ps.com
    e-mail: muratapr@murata-ps.com

    About Murata Power Solutions

    Murata Power Solutions (www.murata-ps.com) is headquartered in Mansfield, Massachusetts, with over 1,300 employees, and locations in the USA, Canada, England, France, Germany, Singapore, Japan and China. Murata Power Solutions designs, manufactures and distributes DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Panel Meters, and offers these products in custom, standard and modified-standard variations. Murata Power Solutions’ products are typically used within electronic applications serving major global market sectors including telecommunications, computing and industrial controls.

    Murata Power Solutions is a division of Murata Manufacturing Co., Ltd., a worldwide leader in the design, manufacture and sale of electronic components and power supply modules. Murata’s devices are found in a wide range of applications including consumer and automotive electronics, and wireless devices. The company has employees and manufacturing facilities throughout the world.

    Follow Murata Power Solutions on Twitter: @murataps



    March 2009   Ref. MPS261A
