| NMG Series |

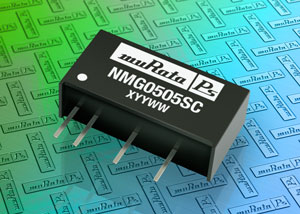

Murata Power Solutions expands its range of high efficiency DC/DC Converters with introduction of 2W single output NMG series
- Industry-standard pinout, isolated 2W single output DC/DC Converters
- Typical efficiency up to 88%, 1kVDC isolation
- Wide choice of input and output voltages
- Full 2W performance across industrial temperature range
|
June 2008, Mansfield, Massachusetts
Murata Power Solutions has introduced a new range of isolated 2W single output DC/DC Converters that deliver class-leading performance. The eight models in the NMG series are housed in small footprint (19.5mm x 7.5mm x 10.0mm high), industry-standard SIP packages that allow easy drop-in replacement of other devices. The new DC/DC Converters also provide a pin compatible power upgrade path from Murata Power Solutions' 1W NMR series.
The NMG series is particularly well suited to isolating and / or converting DC power rails. Galvanic isolation allows the devices to be configured to provide an isolated negative rail in systems where only positive rails exist. Devices are available with input voltages of either 5V or 12V, and a choice of 5V, 9V, 12V and 15V output voltages. Typical efficiency ratings are up to 88% and an isolation voltage of 1kVDC (flash tested for one second) is specified across the range. Suitability for use in high dependability applications is underlined by a MTTF of up to 3.9 million hours.
The space-efficient, fully encapsulated, UL94V-0 rated design has an SMD internal construction that uses the latest toroidal magnetic technology. No electrolytic or tantalum capacitors are used, and with no external components required, inclusion of the NMG series in customer designs is greatly simplified.
A full-load operating temperature range of -40ēC to +85ēC without the need for external heatsinking makes the RoHS compliant NMG series suitable for use in a wide range of applications and environments.
View Product Datasheet >>
|
Further editorial information from:
John Sutherby, Marketing Communications Director
Murata Power Solutions - Power Electronics Division
Tel: 1+ 508.339.3000 x117 Fax: 1+ 508.339.6356
E-mail: jsutherby@murata-ps.com
Contact details for publication:
Murata Power Solutions, Inc.,
Power Electronics Division
11 Cabot Boulevard
Mansfield, MA 02048-1151, USA
Tel: 1+ 508.339.3000 Fax: 1+ 508.339.6356
Product URL: www.murata-ps.com
e-mail: usmedia@murata-ps.com |
|
|
|
About Murata Power Solutions
Murata Power Solutions (www.murata-ps.com), is headquartered in Mansfield, Massachusetts,
with over 1,300 employees, and locations in the USA, Canada, Mexico, England, France,
Germany, Tokyo and China. Murata Power Solutions designs, manufactures and distributes
DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Panel
Meters, and offers these products in custom, standard and modified-standard variations. These
products, which are built to exacting requirements in ISO9000:2000-approved facilities, are
typically used worldwide within telecommunications, computing, industrial and other high-tech
applications.
About Murata
Based in Kyoto Japan, Murata Manufacturing Company Ltd is one of the world's leading
providers of ceramic based components, sensors, and AC/DC and DC/DC power solutions.
Founded in 1950, the company has over 26,000 employees worldwide, and over $4.9 billion US
in consolidated annual sales (as of March 31, 2007). Everywhere in the world, wherever you can
reach, Murata's electronic components are always at work.
For more information about Murata, visit http://www.murata.com
|
| June 2008 Ref. MPS260A |
|
|
