| Dual 14-Bit A/D Converters Provide 20MSPS Performance for Commercial, Industrial, and Military Applications |
- 75dB Signal-to-noise ratio
- Functionally complete design
- Optimised for low-noise applications
- No missing codes over full temperature range
|
February 2007, Mansfield, Massachusetts
Murata Power Solutions

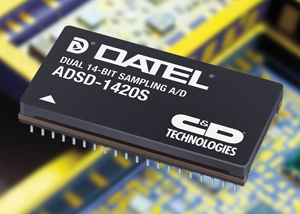

has added the ADSD-1420S and ADSD-1420S-EX to its range of dual sampling A/D converters. The functionally complete 14-Bit resolution modules provide a 20 mega samples per second (MSPS) sampling rate with no missing codes over their full temperature range.
The ADSD-1420S is designed for commercial applications and has an operating temperature range of 0șC to +70șC. The ADSD-1420EX has an operating temperature range of -55șC to +125șC, suitable for more demanding industrial or military applications.
The new edge triggered modules have a ±2.5V input range and are suited to both time and wideband frequency-domain applications. They offer signal-to-noise ratio performance of 75dB, plus total harmonic distortion of -80dB making them ideal for designs with low-noise requirements. Typical applications include high-speed data acquisition systems, medical instruments, radar I/Q, DSP, and automatic test equipment (ATE) for military, industrial or commercial applications.
Housed in an industry standard 40-pin, triple-wide, SMT DIP, the ADSD-1420S and ADSD-1420S-EX contain: two fast-settling sample/hold amplifiers; two 14-Bit A/D converters; multiplexed output buffers; a precision reference; and all the timing and control logic necessary to operate from either one or two single start convert pulses. The reference can be "daisy-chained" to allow multiple modules to be used together to create larger A/D systems.
The new modules are fully FFT tested, and require only a ±5V supply while consuming just 1.6W typical. The separate digital voltage pin can be set to 5V or 3V to allow compatibility with systems using either logic level.
