Low EMI converter transformers approved for use with Analog Devices high speed transceivers

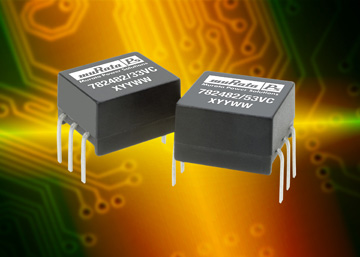

782482 Series:

The 782482 series of converter transformers are specifically designed for use with Analog Devices ADM2482/7 transceiver chipsets used to provide isolated RS-485 and RS-422 interfaces. Carefully controlled turns ratios ensure consistent performance while a toroidal construction helps minimize electromagnetic interference (EMI).

• Compatibility with ADM2482 /7 chipsets speeds implementation of isolated RS-485 and RS-422 interfaces
• Low profile device offers 4kVDC isolation
• Choice of 3.3V and 5.0V input voltages
• Toroidal construction maximizes efficiency and reduces EMI
