Tuesday, October 20, 2009

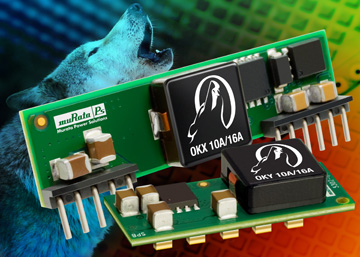

OKY & OKX Additions:
5 Vin versions of OKX 10/16A SIP & OKY 10/16A SMT

The latest additions to our Okami™ range of PoL DC/DC converters comprise 5Vin versions of both the 10A and 16A models within the OKX and OKY series, all available with negative or positive on/off control. The OKX2/OKY2 variants support the sequence/tracking feature. These modules provide an ideal drop-in replacement for other DOSA-compliant parts in space constrained designs that require high density, high efficiency power solutions.

Output currents of 10A and 16A
Programmable output voltage from 0.7525-3.63
Up to 1000µF output capacitance
High efficiency up to 95.5%
Wide input voltage range 2.25Vdc to 5.5Vdc
Optional sequence/tracking feature

OKX Data Sheet

OKY Data Sheet

Technical Support

Models	Output			Input	Efficiency (%)	Request Sample	Request Quote
Models	Voltage (Vdc)	Current (A)	Power (W)	Voltage (Vdc)	Efficiency (%)	Request Sample	Request Quote
OKX-T/10-W5P-C	0.7525-3.63	10	33	2.4-5.5	95.5
OKX-T/10-W5N-C
OKX2-T/10-W5P-C
OKX2-T/10-W5N-C
OKX-T/16-W5P-C		16	52.8		95
OKX-T/16-W5N-C
OKX2-T/16-W5P-C
OKX2-T/16-W5N-C
OKY-T/10-W5P-C		10	33
OKY-T/10-W5N-C
OKY2-T/10-W5P-C
OKY2-T/10-W5N-C
OKY-T/16-W5P-C		16	52.8
OKY-T/16-W5N-C
OKY2-T/16-W5P-C
OKY2-T/16-W5N-C

About Okami™
Okami, Japanese for "wolf", is a registered CTM trademark and may be a registered trademark in certain other countries for Murata Power Solutions' new breed of DOSA PoL DC/DC converters. For more information on the Okami family, please visit
www.murata-ps.com/okami
