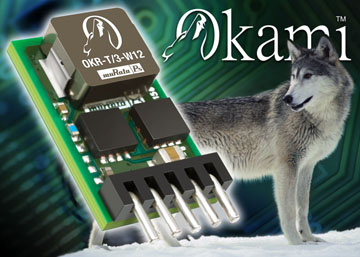

OKR T/3 Series: New 3A SIP

Measuring only 0.41 x 0.65 x 0.4 inches (10.4 x 16.5 x 10.2 mm), the OKR-T/3, a miniature 3A SIP, is the latest addition to the Okami family of PoL DC/DC converters.

  • Output current 3A
  • Wide input voltage range 4.5VDC to 14VDC
  • Programmable output voltage from 0.591-6.0 VDC
  • Drives up to 200 μF ceramic capacitive loads
  • High power conversion efficiency at 93%
  • Outstanding thermal derating performance
  • OKR T/6 and T/10 Series: 6 and 10A versions are under development
 Data Sheet
Technical Support
Models Output Input Efficiency (%) Request
Sample		 Request
Quote
Voltage (Vdc) Current (A) Power (W) Voltage (Vdc)
OKR-T/3-W12-C 0.591-6 3 15 4.5-14 93 Request A Product Sample Request A Price Quote

About Okami™
Okami, Japanese for "wolf", is a registered CTM trademark and may be a registered trademark in certain other countries for Murata Power Solutions' new breed of DOSA PoL DC/DC converters. For more information on the Okami family, please visit
www.murata-ps.com/okami
