| Date: June 29, 2009 |
| Wide input voltage range and industry standard footprint simplify design-in of 6W single output DC/DC Converters |
 |
|
6W single output DC/DC Converters
- 4:1 wide range voltage input (either 12V or 48V nominal)
- Metal case and encapsulated design support excellent thermal and EMI performance
- High power density of 0.94W/cm3
|
6W single output DC/DC Converters
NCS6 Series
View high-resolution image |
| |
 |
|
|
|
|
|
|
|
| Date: June 16, 2009 |
| DATEL Quad Sampling A/D converter combines low noise and excellent dynamic performance for a wide range of image processing applications |
 |
|
Quad Sampling A/D converter
- Functionally complete, quad 14-Bit, 10 MSPS A/D converter
- 0.5 LSB RMS DC noise with no missing codes
- Excellent dynamic performance with SNR of 80dB
- Choice of SMT or TDIP through-hole packages
|
Quad Sampling A/D converter
ADSQ-1410
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: June 9, 2009 |
| New OKL series 12Vin, 3A output current PoL DC/DC converters feature inspectable LGA (iLGA) surface mount package |
 |
|
OKL-T/3-W12 Series
- iLGA: inspectable LGA interconnect for ease of manufacturing
- 12Vin (4.5Vto 14V), 3A output current in compact 12.2mm x 12.2mm footprint
- Programmable output voltage from 0.591V to 5.5V
- 600kHz switching for fast transient response
|
OKL-T/3-W12 Series
DOSA / PoL DC/DC converters
View high-resolution image |
| |
|
|
| Data Sheet OKL-T/3-W12 Series: |
|
 |
|
|
|
 New 12V input SMT modules added to OKAMI™ family of DOSA-compliant PoL DC/DC converters |
|
|
| Data Sheet OKY-T/10 & T/16-D12 Series: |
|
|
|
|
|
 Announcing 5V additions to OKAMI™ family of DOSA-compliant PoL DC/DC converters |
|
|
| Data Sheet OKY-T/3,T/5-W5 Series: |
|
|
|
|
 Addition of 10A and 16A SIP models extends choice of OKAMI™ DOSA-compliant Point-of-Load DC/DC Converters |
|
| Data Sheet OKX-T/10,T/16-D12 Series: |
|
|
|
|
 World's number one board-mounted power company introduces first three models in Okami™ DOSA-compliant point-of-load DC/DC converter range |
|
| Data Sheet OKY-T/3,T/5-D12 Series: |
|
|
|
|
|
|
|
|
| Date: May 29, 2009 |
| Shielded inductors provide a power line filtering solution in applications with EMI susceptibility |
 |
|
1200RS & 1200LRS Series
- Compact design with radial lead format
- DC current ratings to 4.7A IDC
- Inductance values from 10µH to 22mH
- Low DC resistance supports high efficiency designs
|
1200RS & 1200LRS Series
Inductors
View high-resolution image |
| |
|
|
| Data Sheets |
|
1200RS Series
|
|
1200LRS Series
|
|
|
|
|
|
|
| Date: May 13, 2009 |
| Wide input DC/DC converter range extended to offer designers broadest choice of high power density, high efficiency modules |
 |
|
UEI15, UEI30 & UEI Series
- 15W, 30W and 50/60W options
- Choice of 9-36VDC and 18-75VDC wide range inputs
- High power density from industry standard 1in. x 1in., 1in. x 2in. and 1.6in. x 2in. packages
- Fixed output voltages from 3.3VDC to 15VDC
|
UEI15, UEI30 & UEI Series
Wide input DC/DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
UEI15 Series
|
|
UEI30 Series
|
|
UEI Series
|
|
|
|
|
|
|
| Date: March 30, 2009 |
| True-rms AC Ammeters feature user-settable over current alarm |
 |
|
ACA-20RM-ALM Series
- Choice of 0-30A or 0 to 50A input ranges
- Measure true-rms value of complex AC current, non-sinusoidal waveforms
- Built-in current transformer simplifies implementation
- Large easy-to-read three-and-a-half digit bright red LED display
|
ACA-20RM-ALM Series
AC Ammeters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: March 16, 2009 |

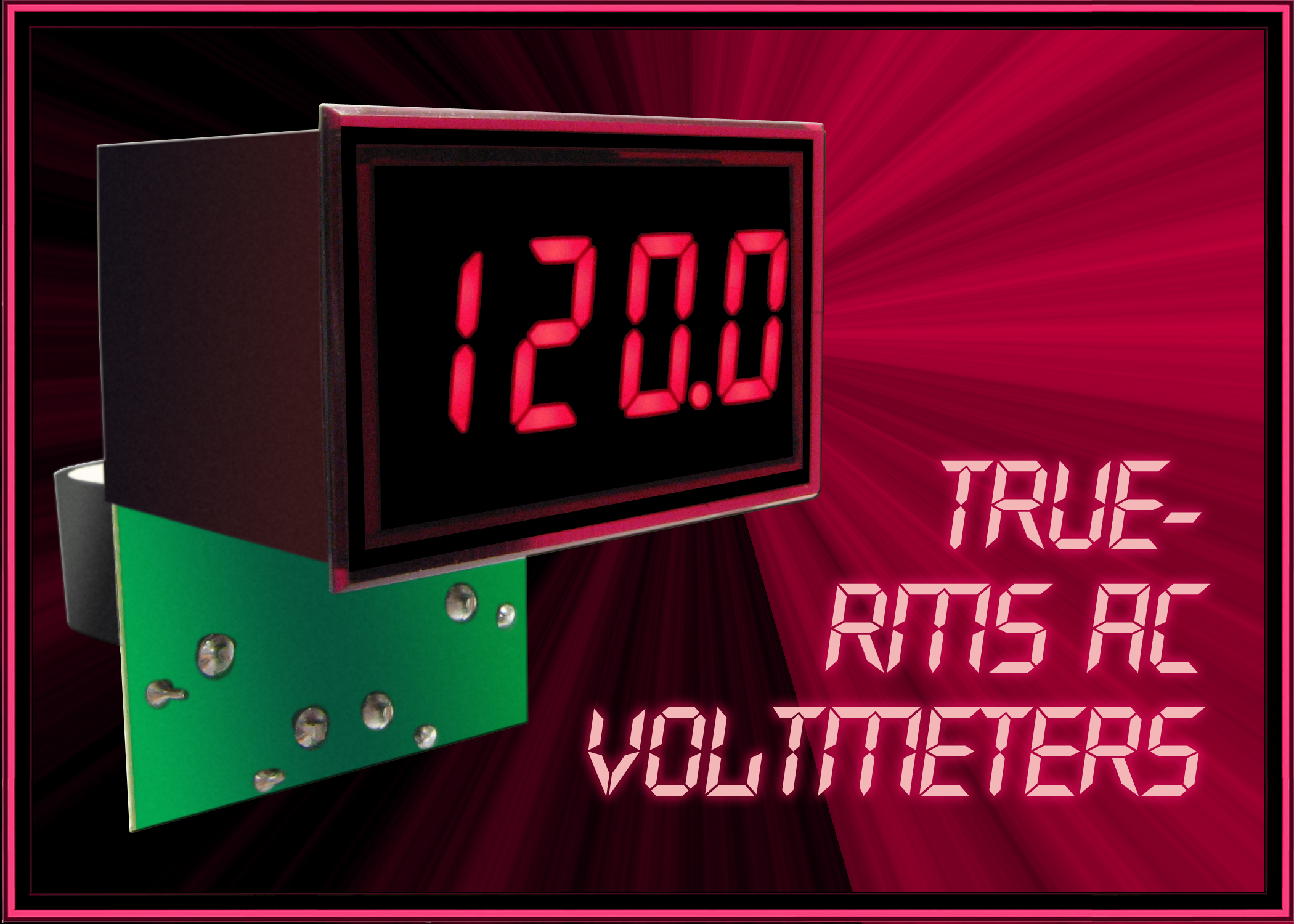

| Fully integrated true-rms Voltmeters measure to 0V for complex AC voltages |
 |
|
DMS-20RM Series
- 20VAC, 200VAC and 300VAC input ranges
- Range offers choice of AC and DC operating supply options
- Overcomes limitations of conventional average responding AC Voltmeters
- Rugged, encapsulated design provides moisture and vibration resistance
- 9.4mm three-and-a-half digit bright red LED display
|
DMS-20RM Series
Digital Panel Voltmeters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: March 4, 2009 |
| Integrated design surface mount 1W DC/DC converters bring benefits of IC-style packaging |
 |
|
NTF Series
- Surface mount IC style package with 0.7W/cm3 power density
- Choice of three wide range input voltages
- Tightly regulated 5V, 12V or 15V output
- Voltage trim feature
|
NTF Series
DC to DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: February 23, 2009 |
| Wide 4:1 input DC/DC converters deliver 30W from 1in. x 2in. package |
 |
|
UEI30 Series
- Industry standard open-frame package and pinout
- Efficiency levels up to 91%
- 3.3VDC to 15VDC fixed output voltages
- Choice of 9 to 36VDC and 18 to 75VDC input voltages
|
UEI30 Series
DC-to-DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: February 11, 2009 |

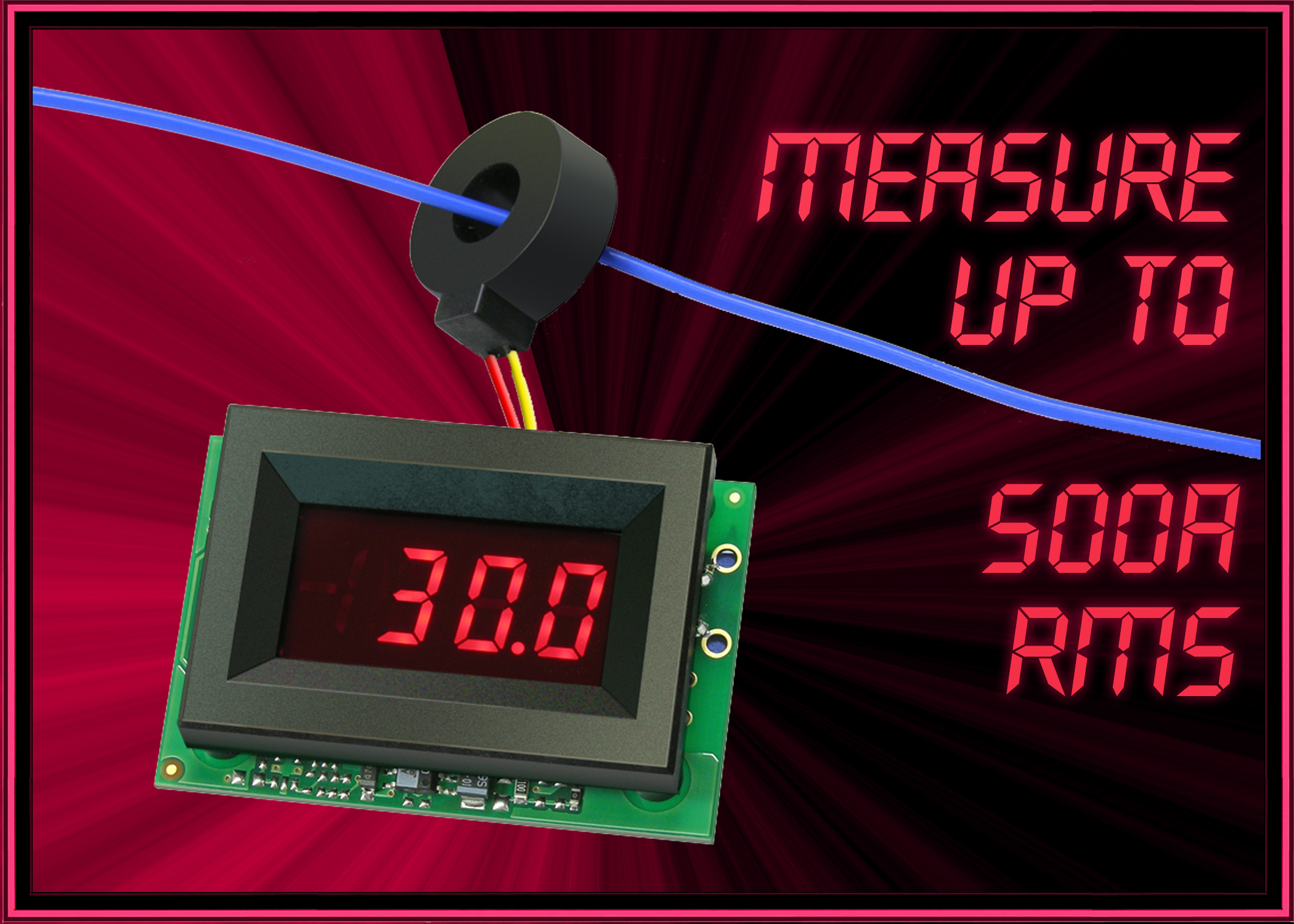

| True-rms AC ammeters interface directly with current transformers to give dependable measurements in switching power supply applications |
 |
|
ACA5-20RM Series
- Six model family covering input range of 100A to 500A
- Direct interface to output of external 5A current transformer
- Choice of operating voltages (85 to 140VAC & 170 to 264VAC)
- Crest factors (peak current to rms current ratio) up to five
|
ACA5-20RM Series
digital panel voltmeters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: February 5, 2009 |
| Blue and green LED versions added to low-power digital panel voltmeter range |
 |
|
DMS-20PC Series
- Innovative drive technology gives low power consumption of 12 to 17mA (blue and green LEDs) and 7 to 12mA (red LEDs)
- Compact overall dimensions and large 9.4mm high LED display in choice of colors
- Self-contained, fully functional design with component-like plug-in convenience
|
DMS-20PC Series
digital panel voltmeters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: January 26, 2009 |
| Quarter brick DC/DC Converter delivers ultra-high power |
 |
|
HPQ Series
- Up to 50A @ 3.3V providing output power up to 165W
- Efficiency up to 90%
- Wide range 36VDC to 75VDC input voltages
- 2250V isolation (BASIC)
|
HPQ Series
DC/DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: January 19, 2009 |
| New inductor ranges suit high density applications with low and medium currents |
 |
|
1100R & 1300R Series
- Current ratings to 6.3A
- Inductance values from 1.0µH to 68mH
- Compact size and low DC resistance
|
1100R & 1300R Series
inductors
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: January 12, 2009 |
| High power density and high efficiency front-end power supply delivers 2800W output for mission critical distributed power architectures |
 |
|
D1U-H-2800-52-HBxC Series
- -52V main output with 12V standby
- 2800W output power
- 91.6% efficiency at full load, 92.0% at 2kW load
- Compact 1U (11.5in. x 5.5in x 1.6in.) enclosure with internal cooling fans
- N+1 redundancy and hot swapping capable
- I2C bus interface with status indicators
|
D1U-H-2800-52-HBxC Series
AC/DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
