| Date: August 10, 2009 |

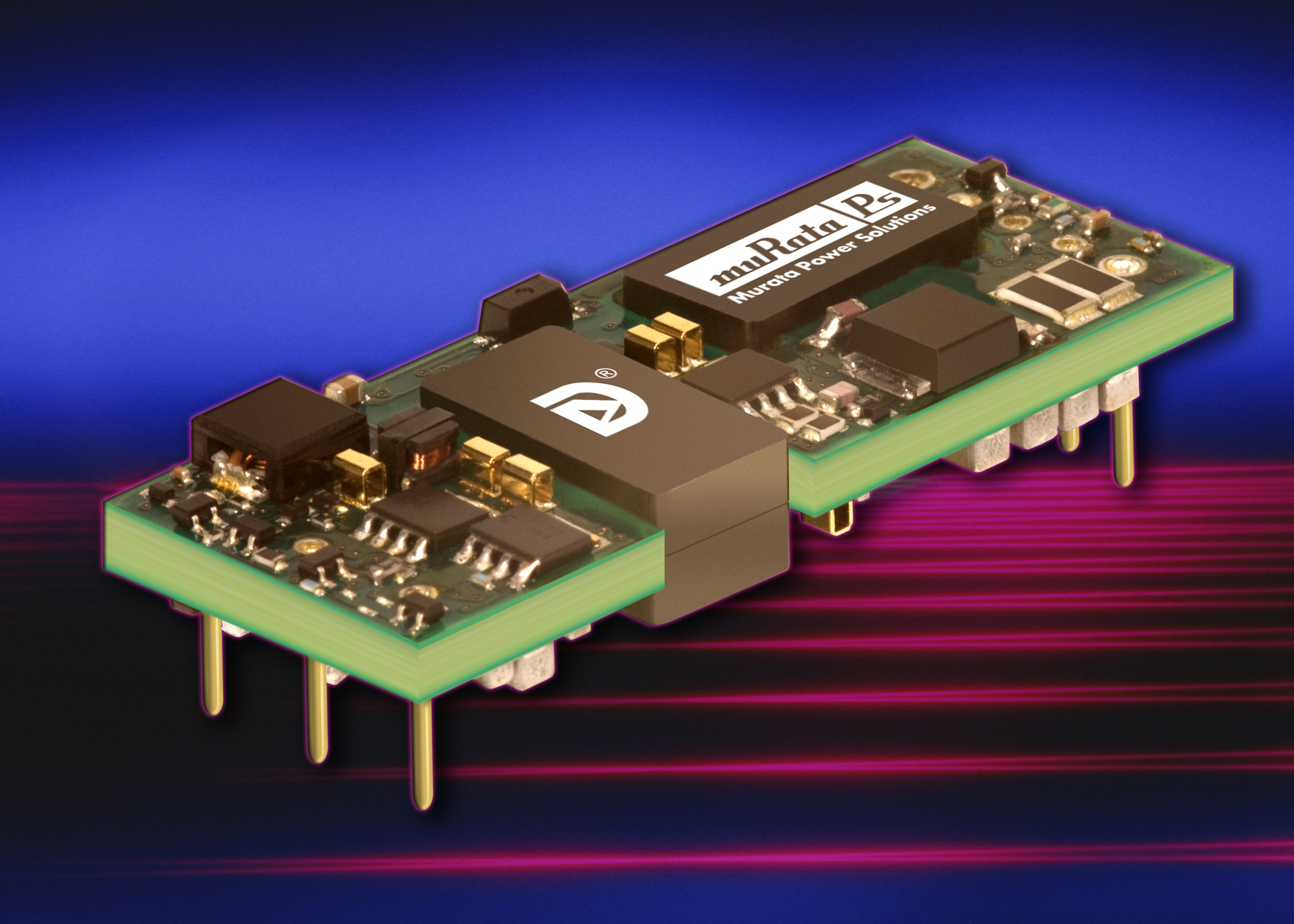

| Murata Power Solutions extends eighth-brick, ultra-wide input DC/DC Converter series |
 |
|
UWE Series
- New models offering fixed outputs of 15A@5V and 5A@15V
- Up to 75W of output power from eighth-brick industry-standard package
- Ultra-wide 4:1 input range of 9VDC to 36VDC or 18VDC to 75VDC
- Pin compatible with quarter-brick modules to allow space saving replacement
|
Ultra-Wide input DC/DC Converter
UWE Series
View high-resolution image |
| |
 |
|
|
|
|
|
|
|

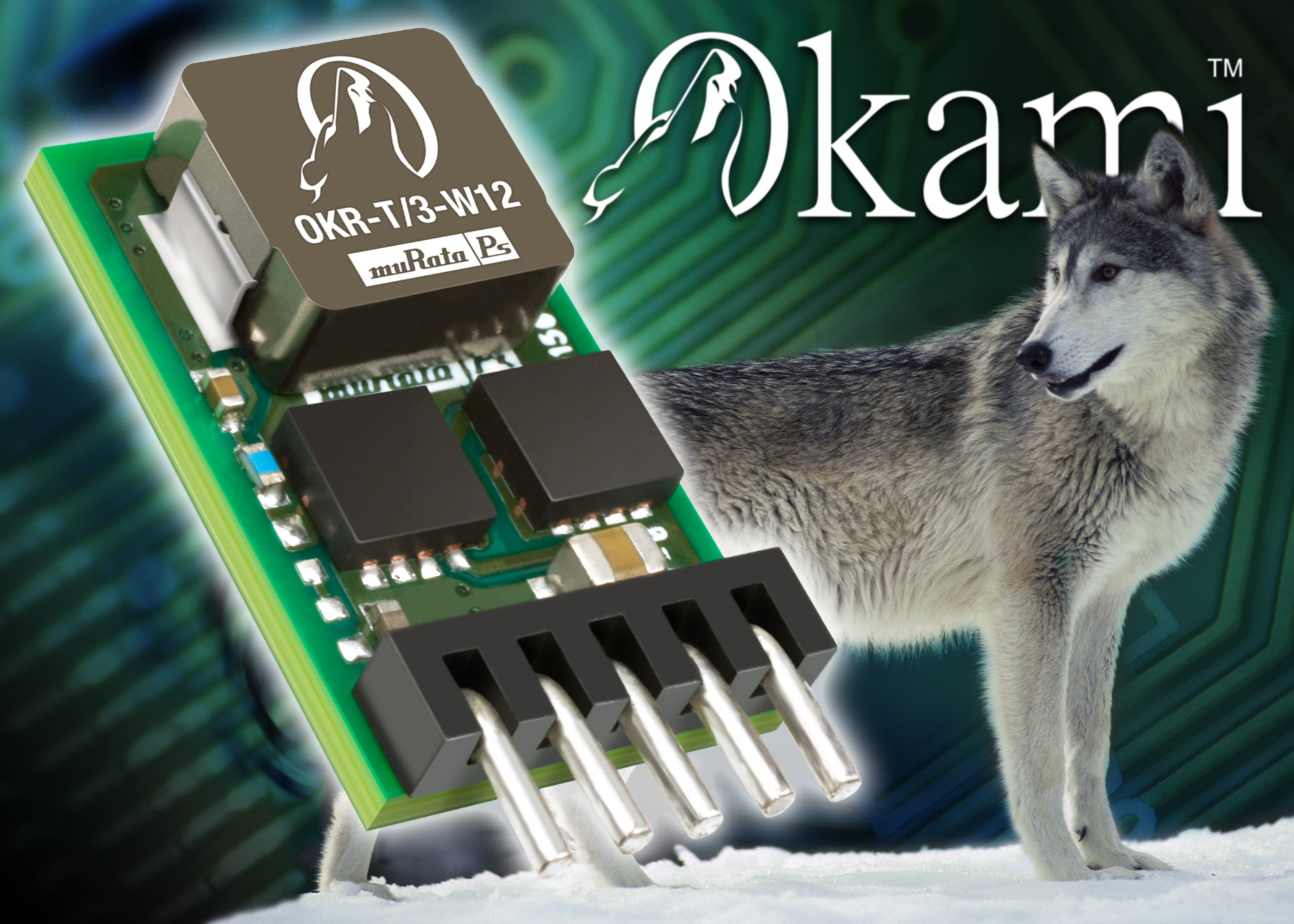

| Date: July 28, 2009 |
| Okami™ PoL DC/DC Converter range expands with the introduction of 3A miniature SIP |
 |
|
OKR-T/3-W12-C
- Miniature SIP package suited to space-constrained applications
- Outstanding thermal derating and 93% conversion efficiency
- 4.5 V to 14V input voltage range
- Drives up to 200µF ceramic capacitive loads
|
3A, SIP, PoL DC/DC Converter
OKR-T/3-W12-C
View high-resolution image |
| |
|
|
|
|
|
|
|
|

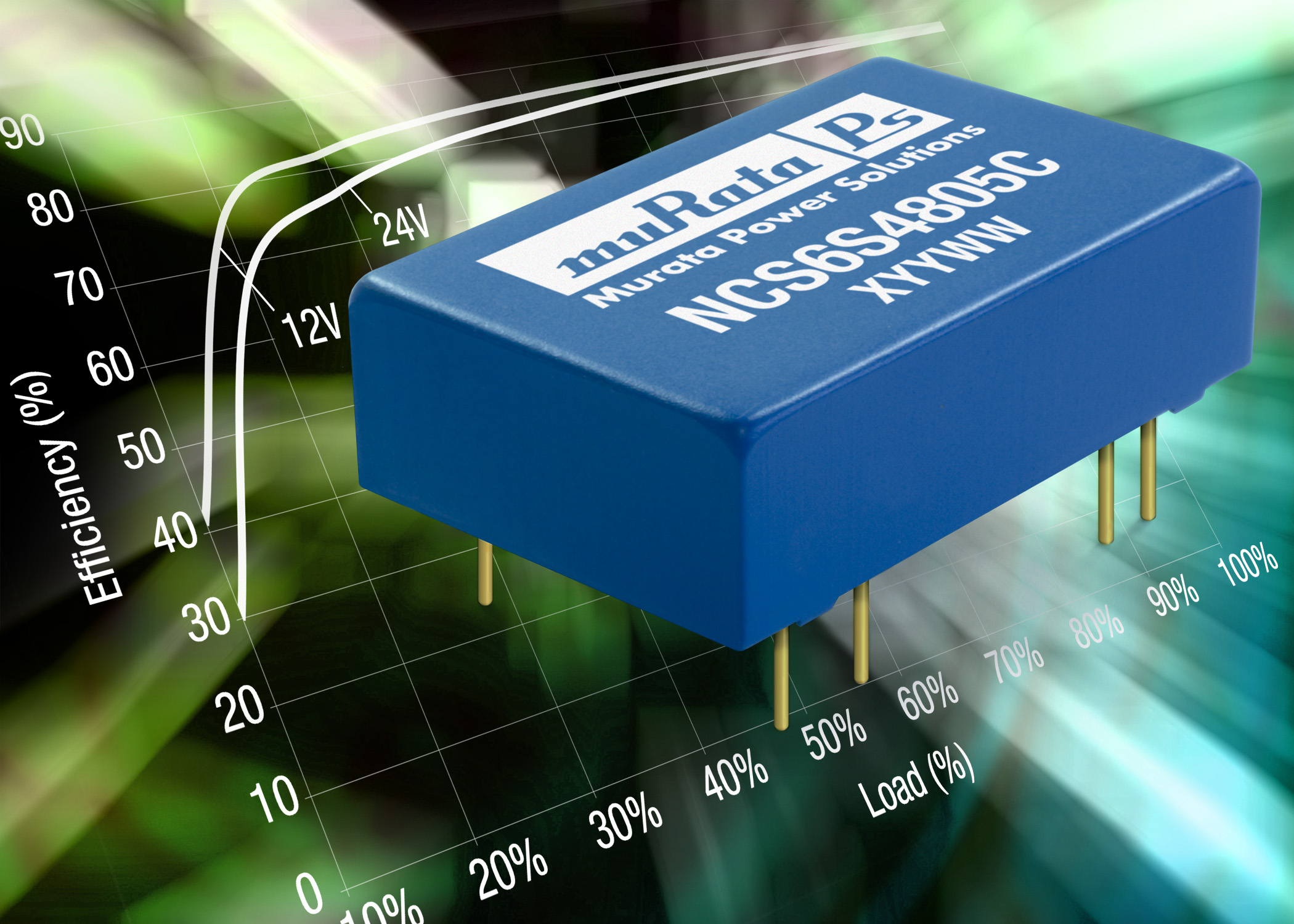

| Date: June 29, 2009 |
| Wide input voltage range and industry standard footprint simplify design-in of 6W single output DC/DC Converters |
 |
|
6W single output DC/DC Converters
- 4:1 wide range voltage input (either 12V or 48V nominal)
- Metal case and encapsulated design support excellent thermal and EMI performance
- High power density of 0.94W/cm3
|
6W single output DC/DC Converters
NCS6 Series
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: June 9, 2009 |

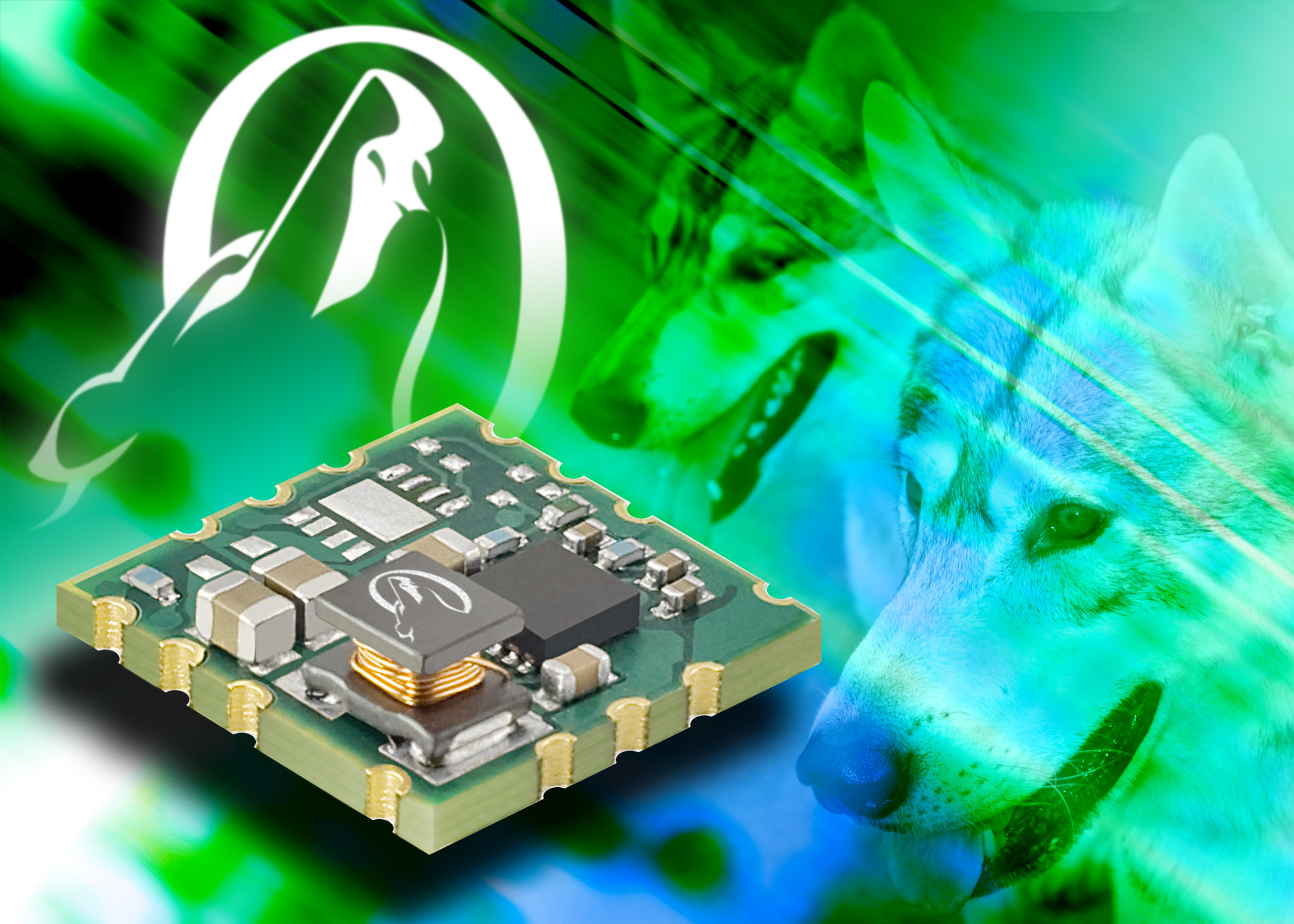

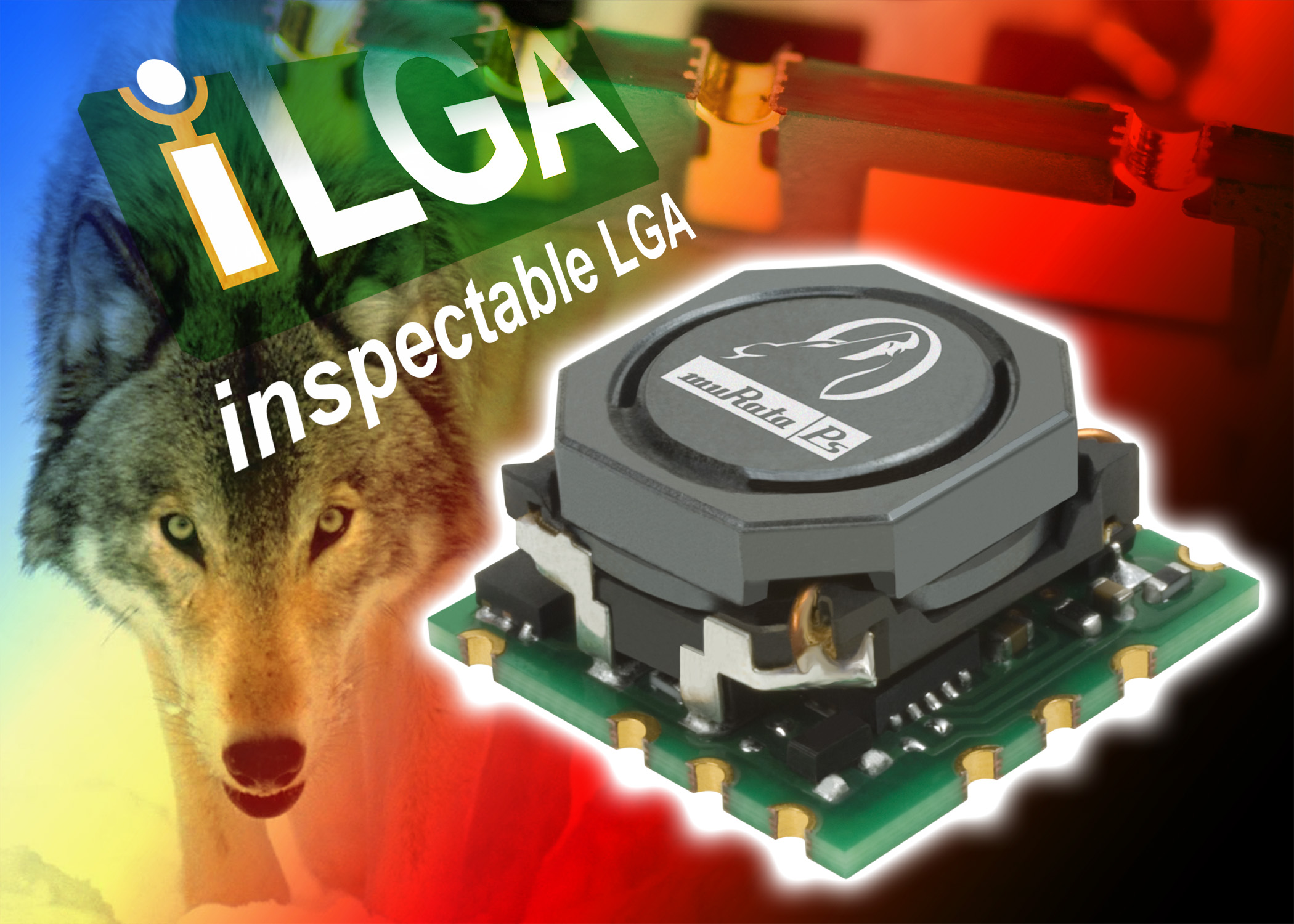

| New OKL series 12Vin, 3A output current PoL DC/DC converters feature inspectable LGA (iLGA) surface mount package |
 |
|
OKL-T/3-W12 Series
- iLGA: inspectable LGA interconnect for ease of manufacturing
- 12Vin (4.5Vto 14V), 3A output current in compact 12.2mm x 12.2mm footprint
- Programmable output voltage from 0.591V to 5.5V
- 600kHz switching for fast transient response
|
OKL-T/3-W12 Series
DOSA / PoL DC/DC converters
View high-resolution image |
| |
|
|
| Data Sheet OKL-T/3-W12 Series: |
|
 |
|
|
|
|

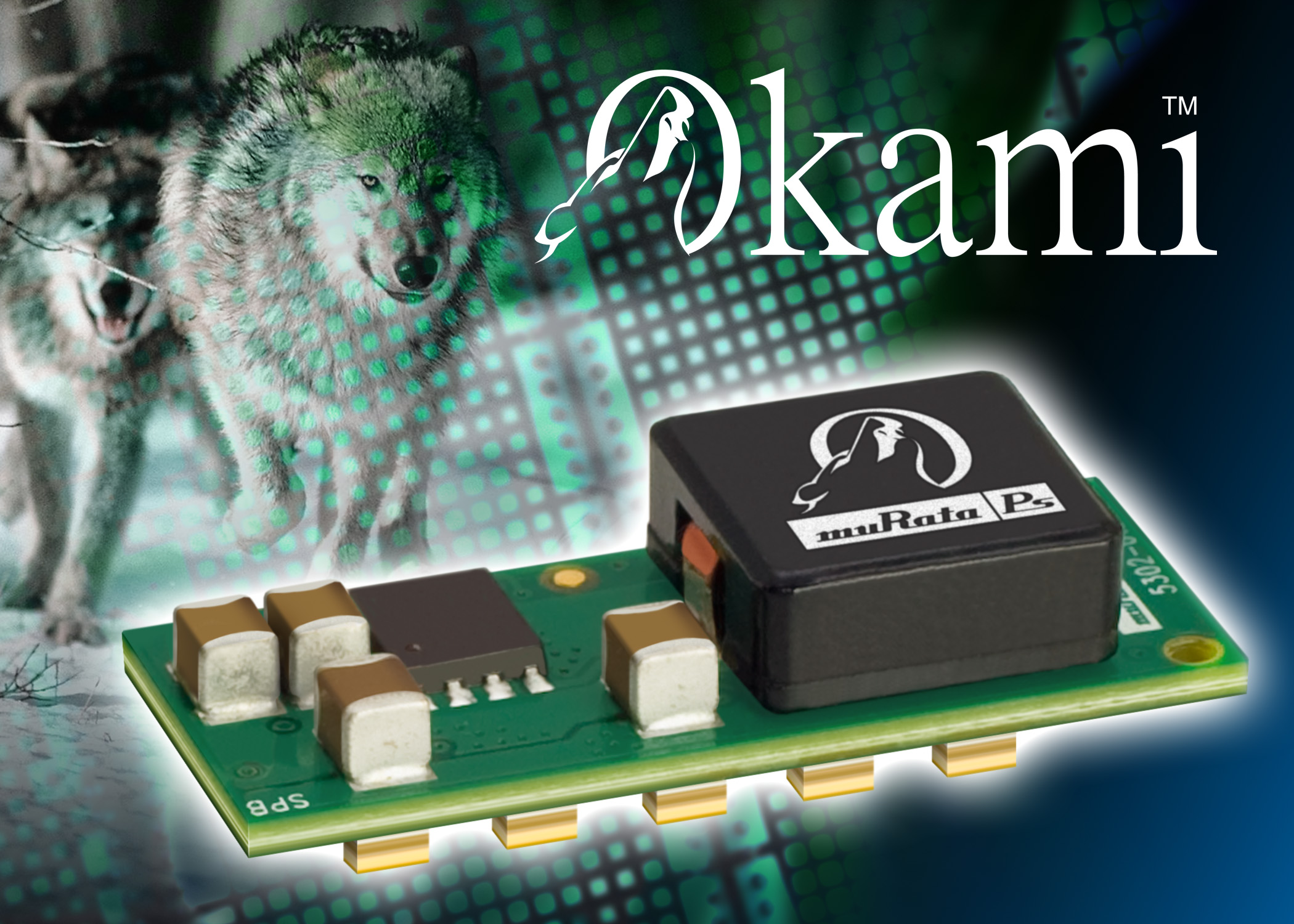

| Date: May 26, 2009 |
| New 12V input SMT modules added to OKAMI™ family of DOSA-compliant PoL DC/DC converters |
 |
|
OKY-T/10 &T/16-D12 Series
- Available with 10A or 16A Output current
- Programmable non-isolated output voltage from 0.75V to 5.5V
- Able to support up to 1000µF output ceramic capacitance
- High efficiency up to 94.5%
- Wide input voltage range 8.3VDC to 14VDC
- Optional Sequence/Tracking feature (OKY2 models)
|
OKY-T/10 & T/16-D12 Series
DOSA / PoL DC/DC converter
View high-resolution image |
| |
|
|
| Data Sheet OKY-T/10 & T/16-D12 Series: |
|
|
|
|
|
|

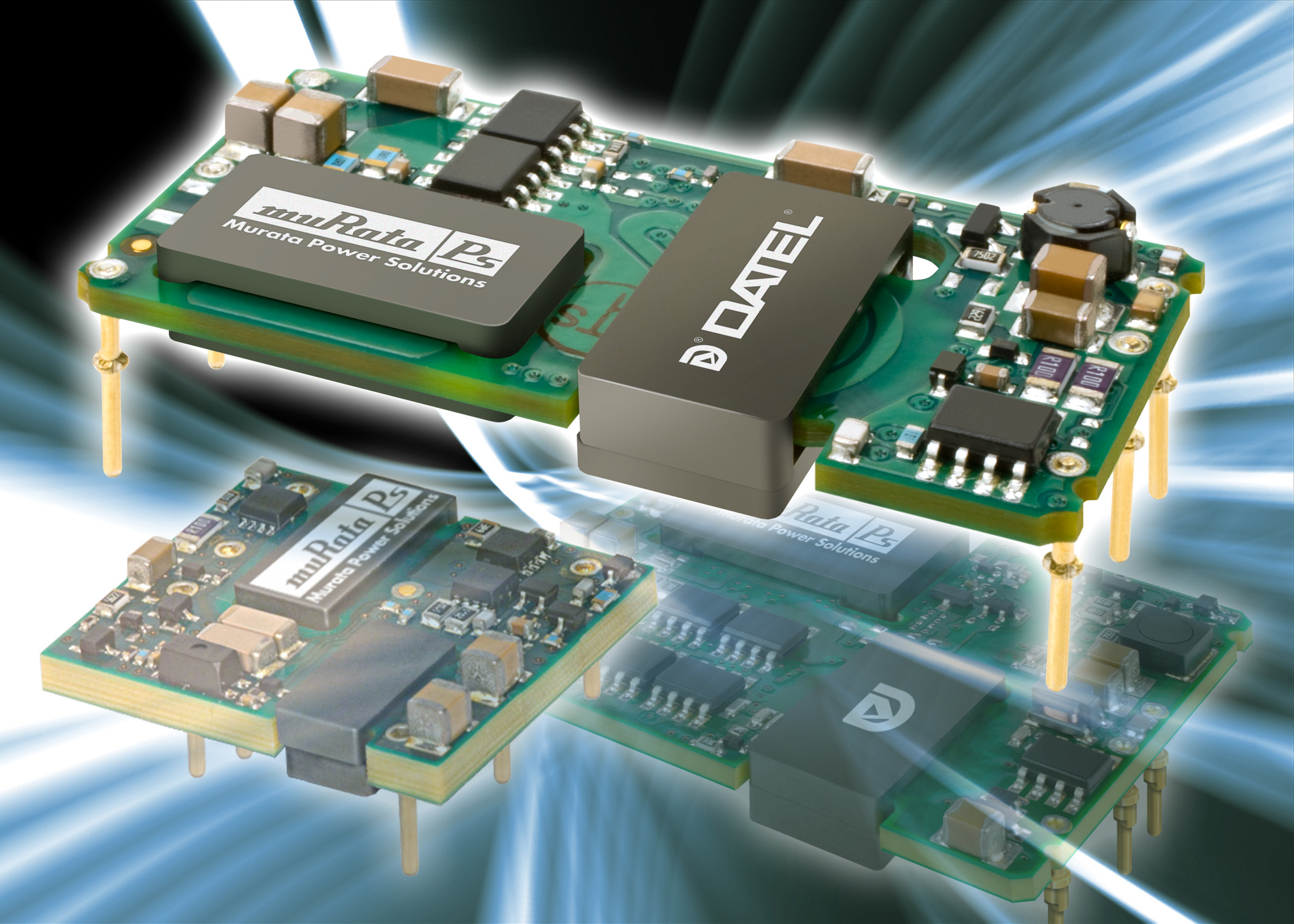

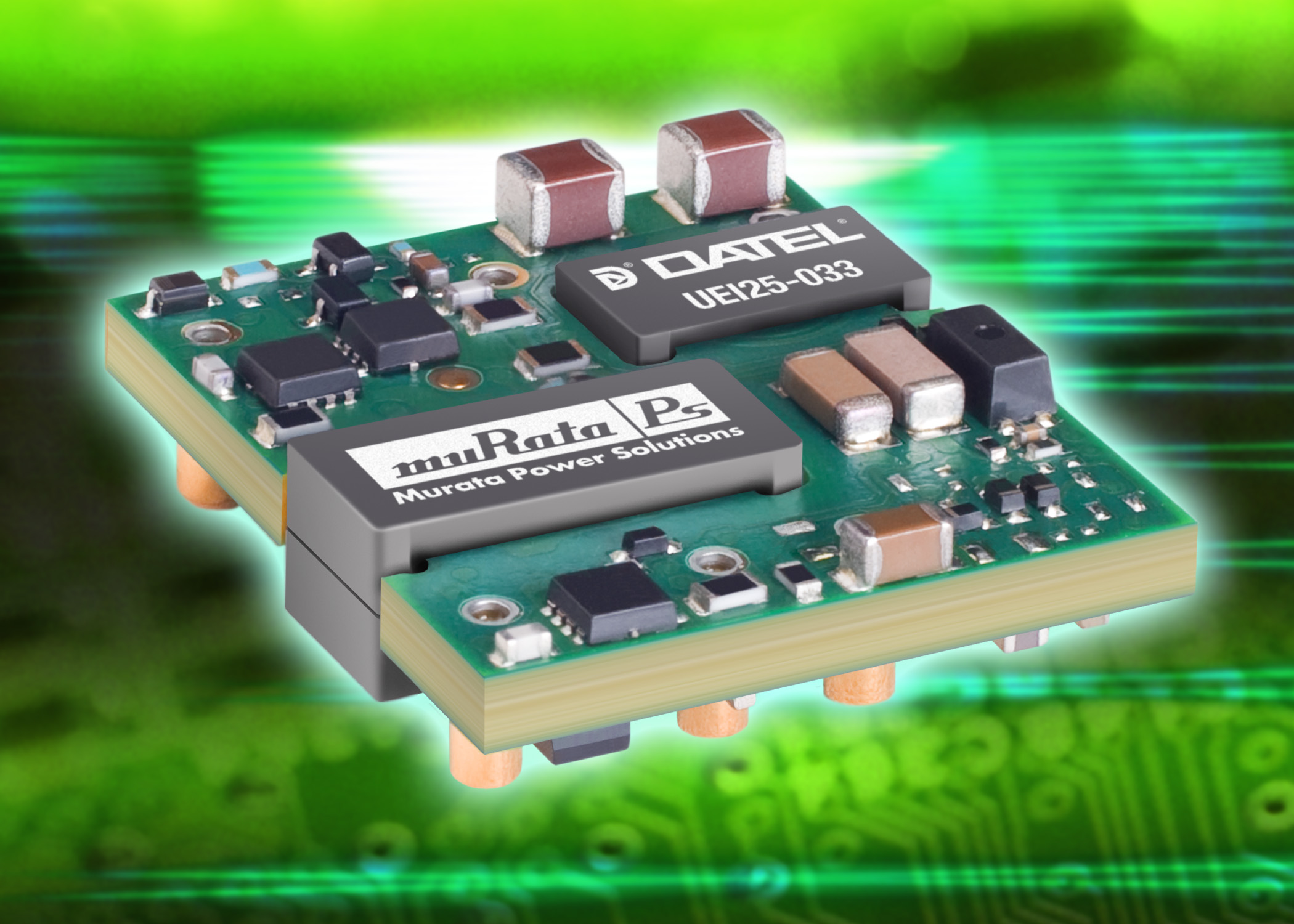

| Date: May 13, 2009 |
| Wide input DC/DC converter range extended to offer designers broadest choice of high power density, high efficiency modules |
 |
|
UEI15, UEI30 & UEI Series
- 15W, 30W and 50/60W options
- Choice of 9-36VDC and 18-75VDC wide range inputs
- High power density from industry standard 1in. x 1in., 1in. x 2in. and 1.6in. x 2in. packages
- Fixed output voltages from 3.3VDC to 15VDC
|
UEI15, UEI30 & UEI Series
Wide input DC/DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
UEI15 Series
|
|
UEI30 Series
|
|
UEI Series
|
|
|
|
|
|
|

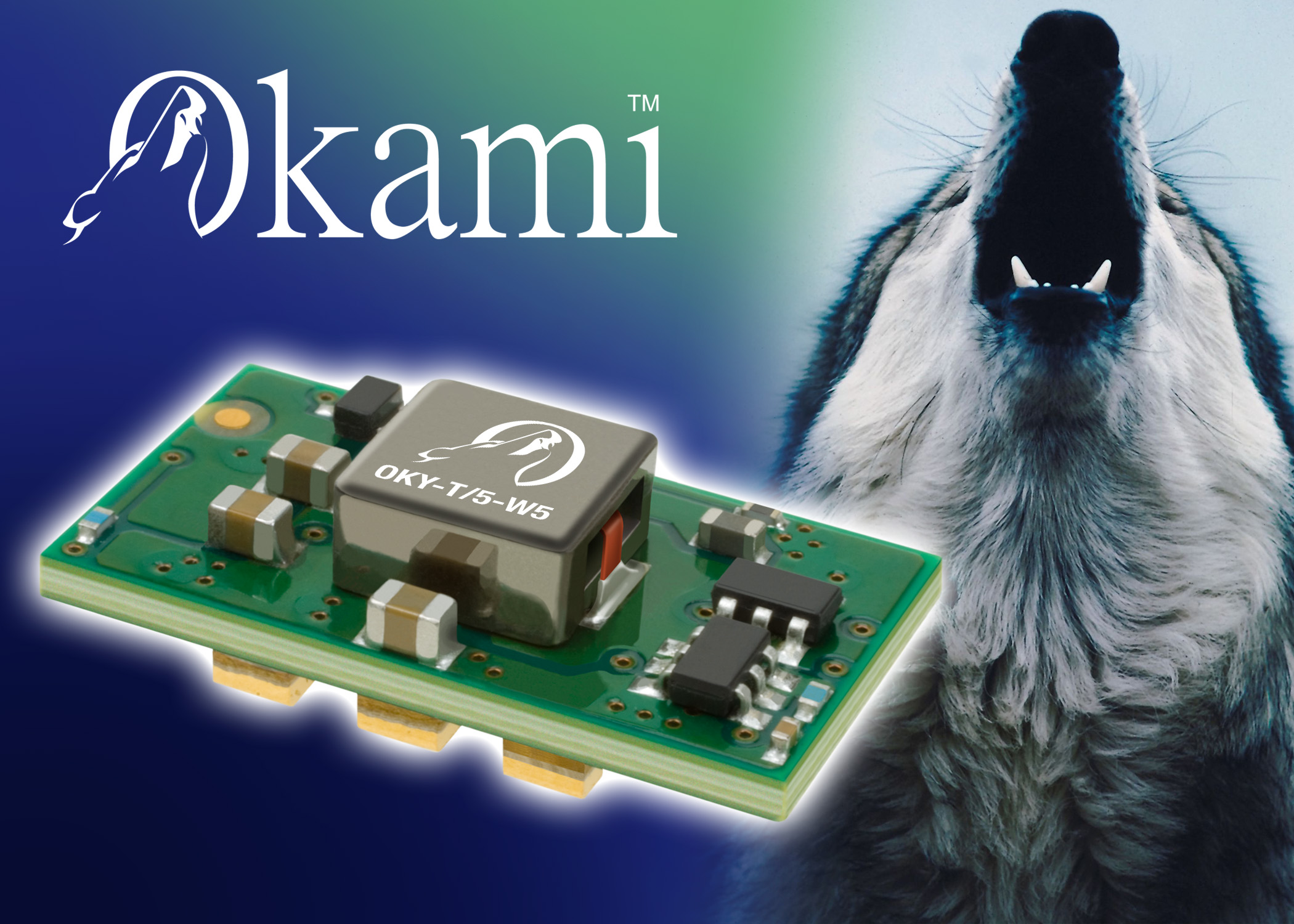

| Date: April 14, 2009 |
| Announcing 5V additions to OKAMI™ family of DOSA-compliant PoL DC/DC converters |
 |
|
OKY-T/3, T/5-W5 Series
- Able to drive 1000µF Ceramic capacitive loads
- DOSA compliant, industry standard SMT packages
- 2.4VDC - 5.5VDC input voltage range with choice of 3A and 5A output current models
- Programmable output voltage of 0.75VDC to 3.63VDC
- High power conversion efficiency up to 94.5%
|
OKY-T/3, T/5-W5 Series
DOSA / PoL DC/DC converter
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: March 23, 2009 |

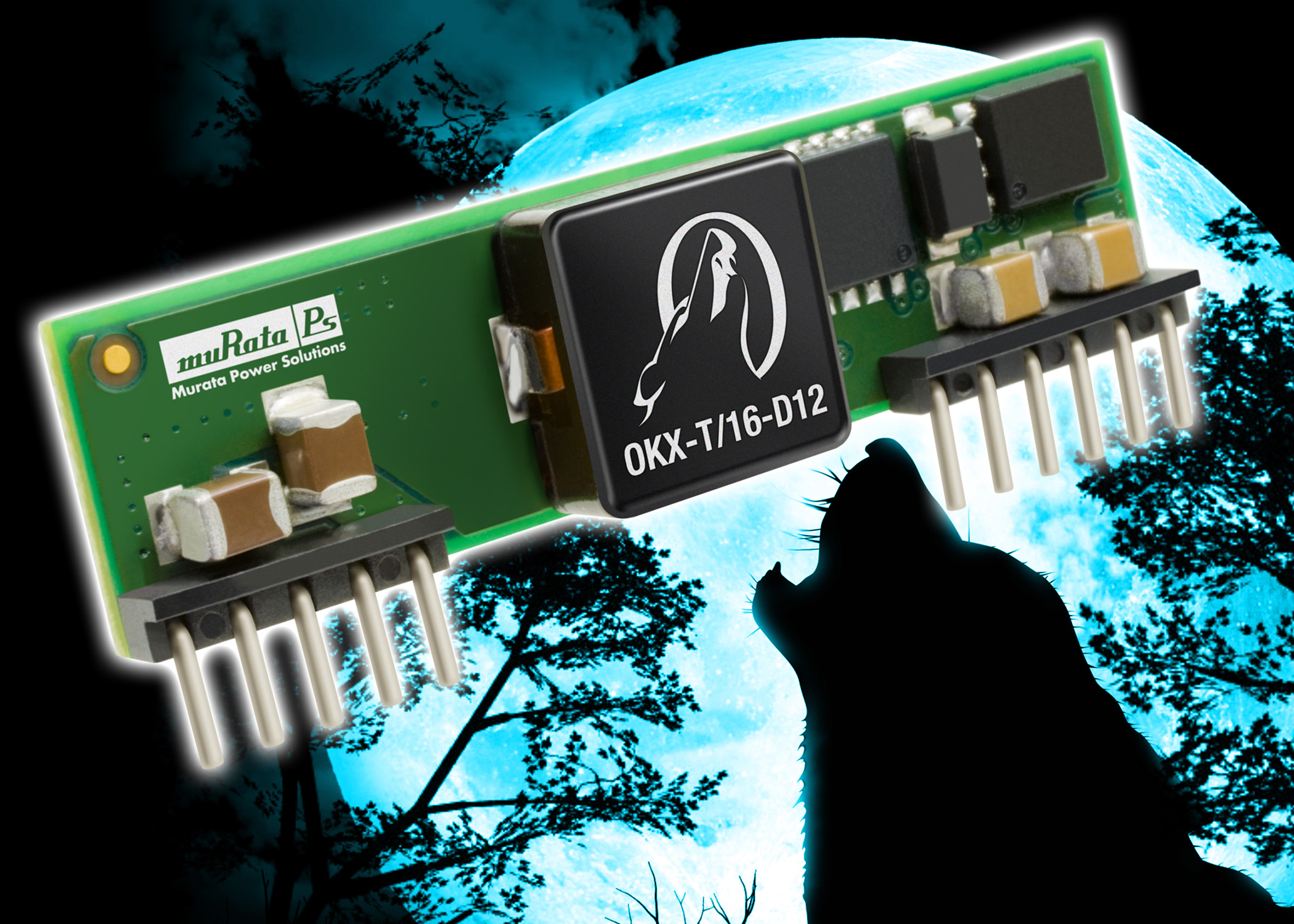

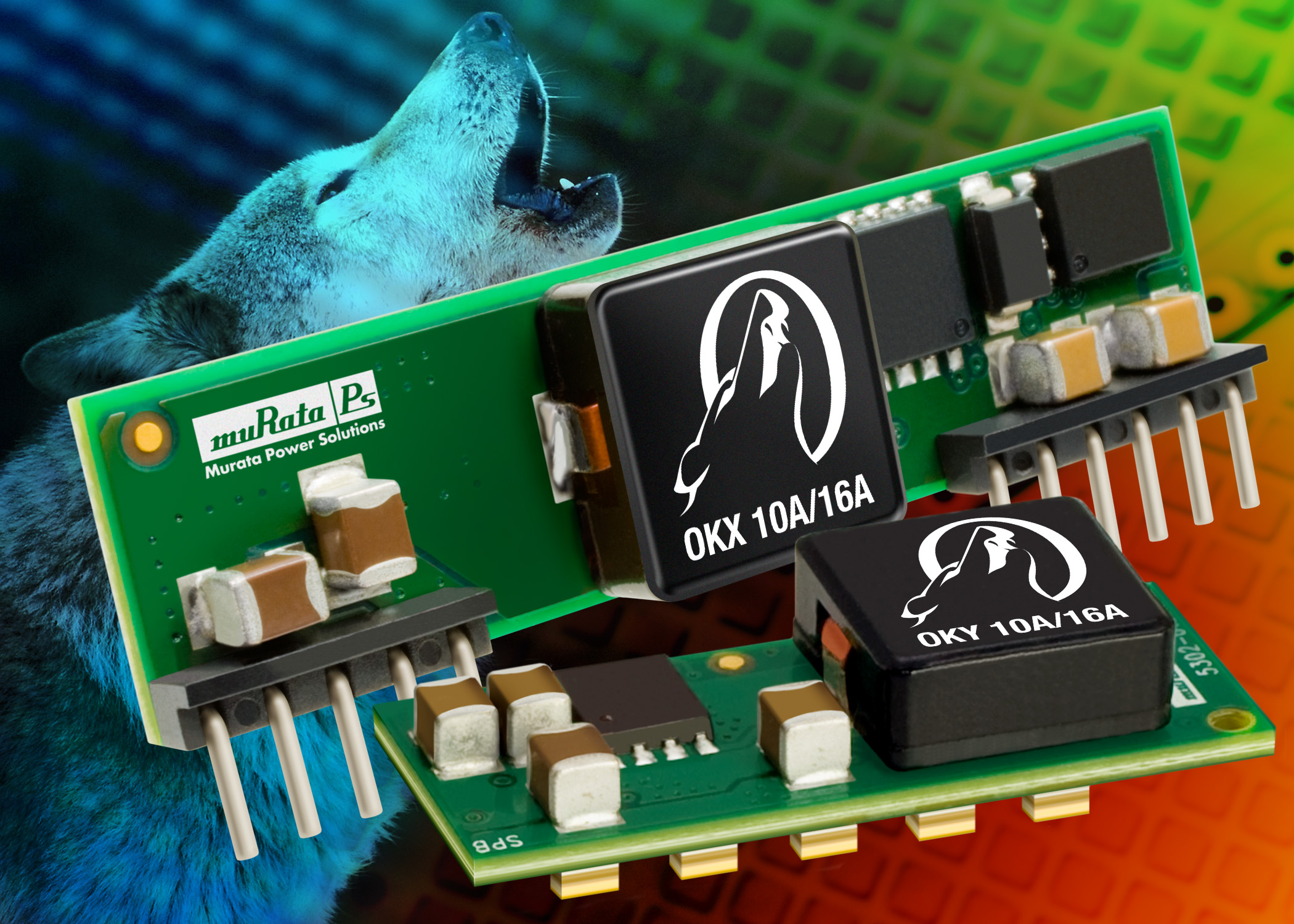

| Addition of 10A and 16A SIP models extends choice of OKAMI™ DOSA-compliant Point-of-Load DC/DC Converters |
 |
|
OKX T/10 & T/16-D12 Series
- Able to drive 1000µF capacitive loads
- 8.3VDC to 14VDC input voltage range
- Programmable output voltage of 0.75VDC to 5.5VDC
- High power conversion efficiency up to 94.5%
|
OKX T/10 & T/16-D12 Series
DOSA PoLs DC/DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: March 4, 2009 |

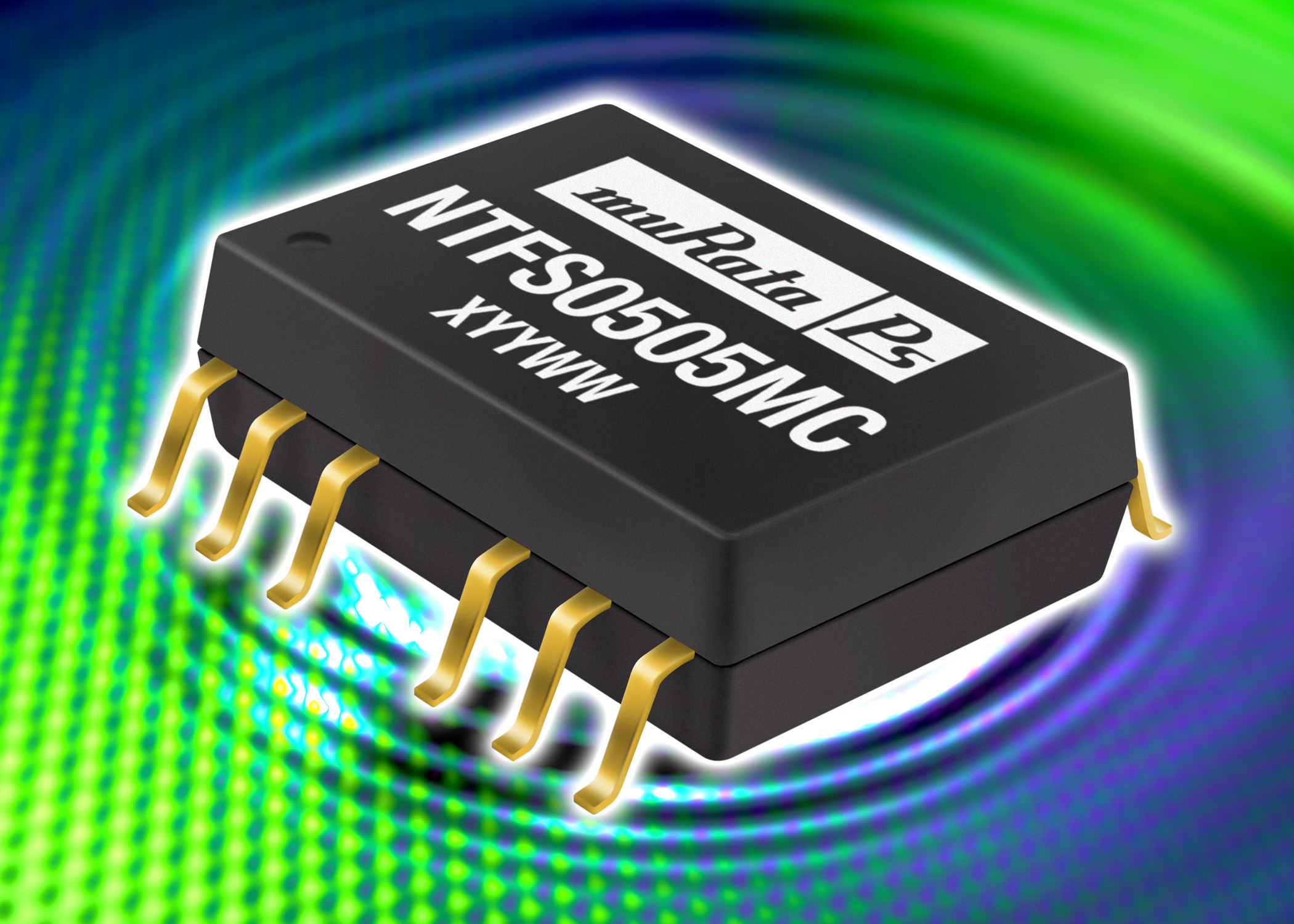

| Integrated design surface mount 1W DC/DC converters bring benefits of IC-style packaging |
 |
|
NTF Series
- Surface mount IC style package with 0.7W/cm3 power density
- Choice of three wide range input voltages
- Tightly regulated 5V, 12V or 15V output
- Voltage trim feature
|
NTF Series
DC to DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|

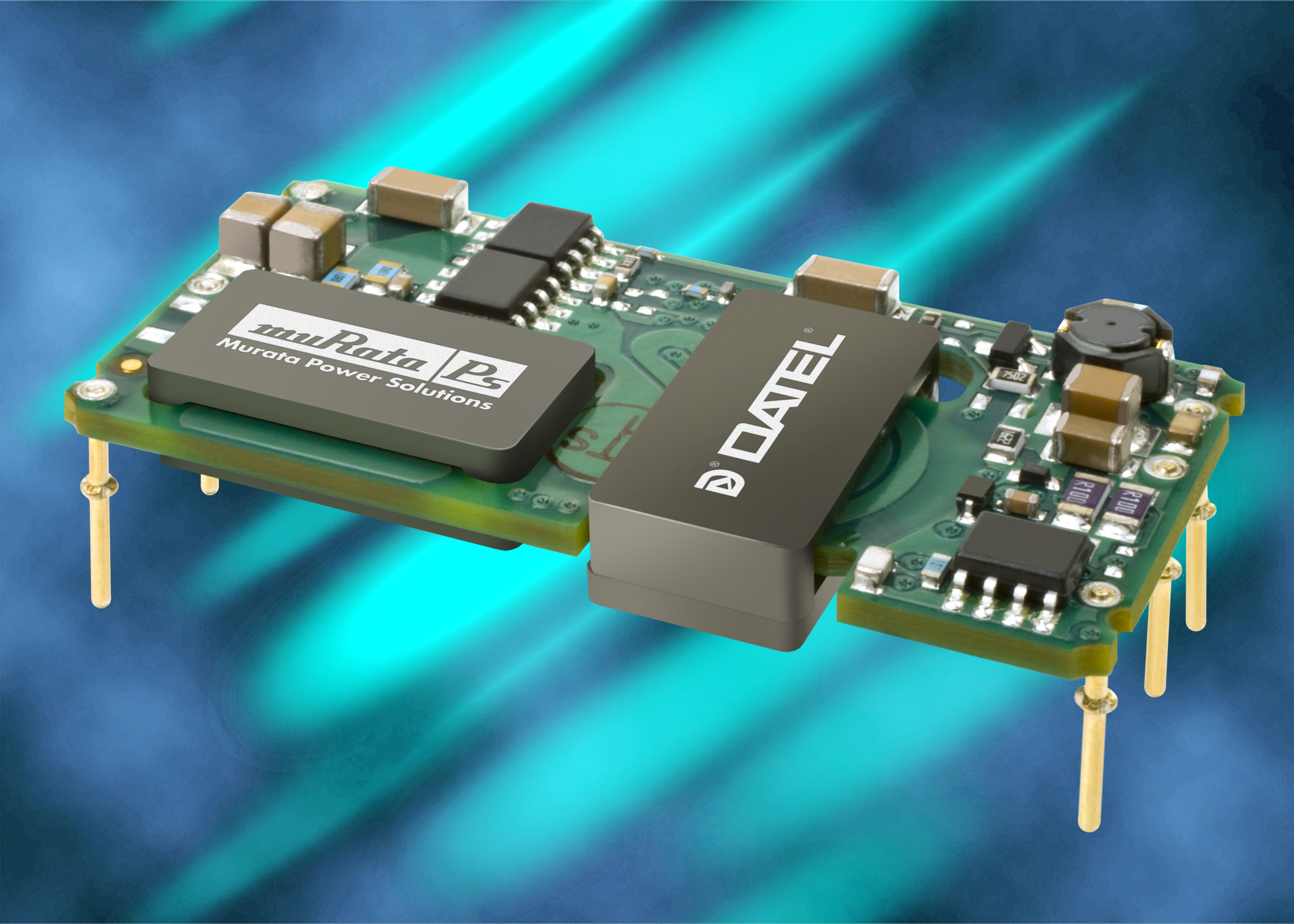

| Date: February 23, 2009 |
| Wide 4:1 input DC/DC converters deliver 30W from 1in. x 2in. package |
 |
|
UEI30 Series
- Industry standard open-frame package and pinout
- Efficiency levels up to 91%
- 3.3VDC to 15VDC fixed output voltages
- Choice of 9 to 36VDC and 18 to 75VDC input voltages
|
UEI30 Series
DC-to-DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: February 16, 2009 |

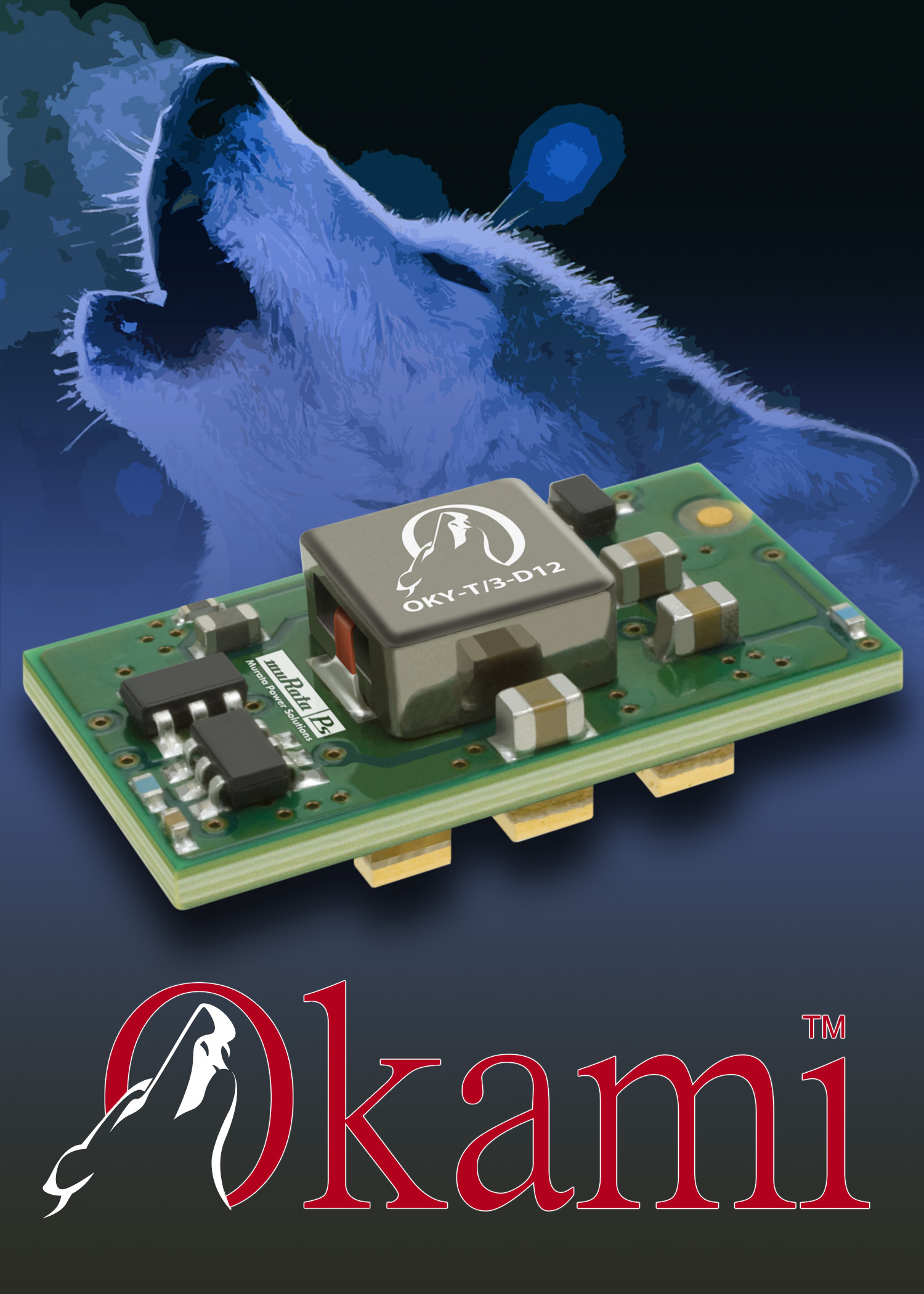

| World's number one board-mounted power company introduces first three models in Okami™ DOSA-compliant point-of-load DC/DC converter range |
 |
|
Okami™ : OKY-T/3 & OKY-T/5 Series
- Okami modules provide drop-in replacement for DOSA PoL converters and competitive alternative to discrete designs
- Choice of 3A and 5A output current
- Wide input voltage range and user selectable output voltage
- Fixed-frequency buck switching topology gives efficiency to 93% , low heat and low noise
- High load capacitance to 1000µF
- Virtually no derating across rated temperature range
|
Okami™ : OKY-T/3 & OKY-T/5 Series
DC-DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: January 26, 2009 |
| Quarter brick DC/DC Converter delivers ultra-high power |
 |
|
HPQ Series
- Up to 50A @ 3.3V providing output power up to 165W
- Efficiency up to 90%
- Wide range 36VDC to 75VDC input voltages
- 2250V isolation (BASIC)
|
HPQ Series
DC/DC
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: November 26, 2008 |

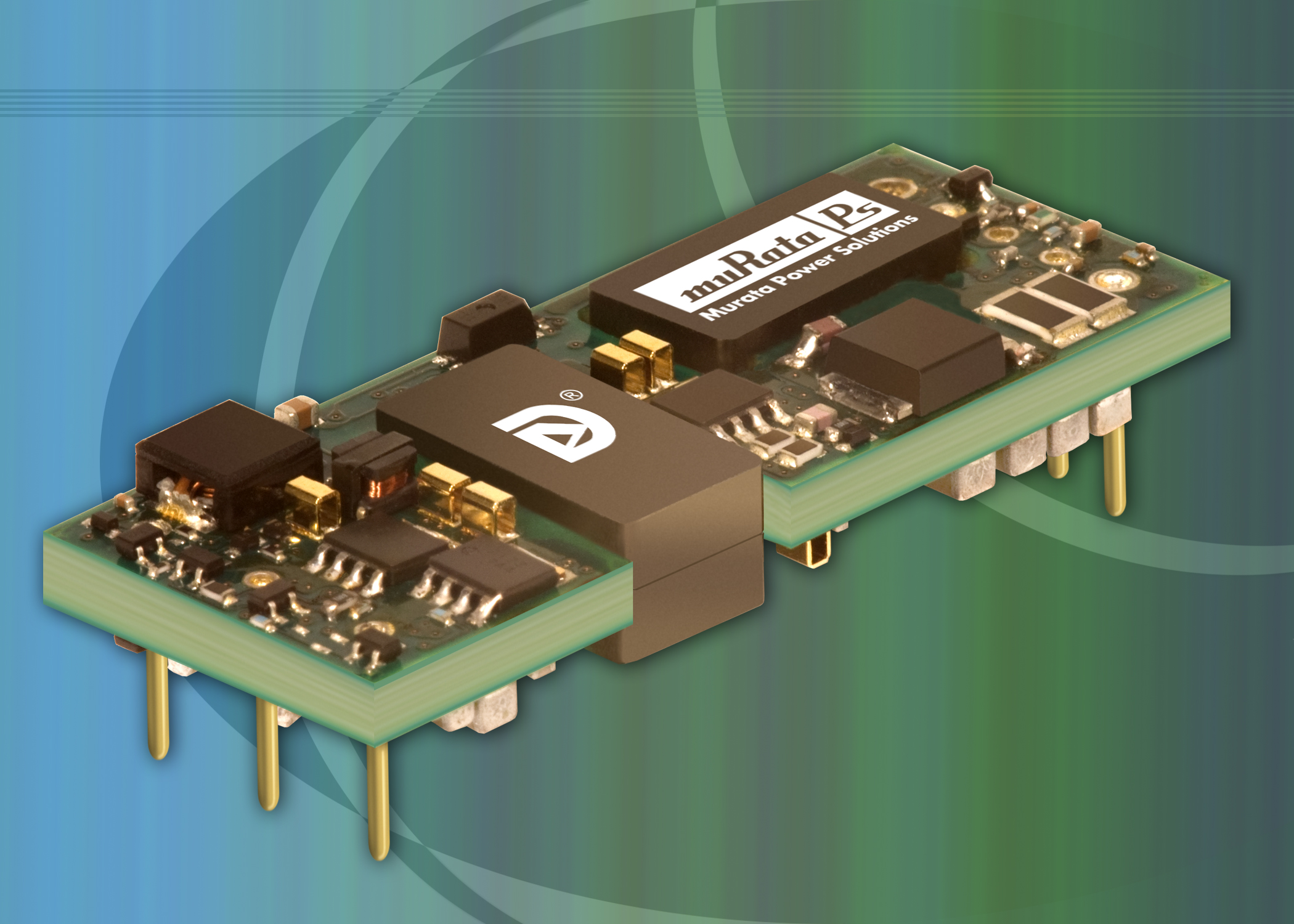

| UWE Series are world's first eighth-brick DC/DC Converters to offer 4:1 ultra-wide input voltages |
 |
|
UWE Series
- Ultra-wide input of 9VDC to 36VDC or 18VDC to 75VDC
- Fixed output providing up to 75W of power
- Pin compatible with quarter-brick modules to allow space saving replacement
- 1500VDC input to output isolation (basic insulation)
|
UWE Series
dc to dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: November 17, 2008 |

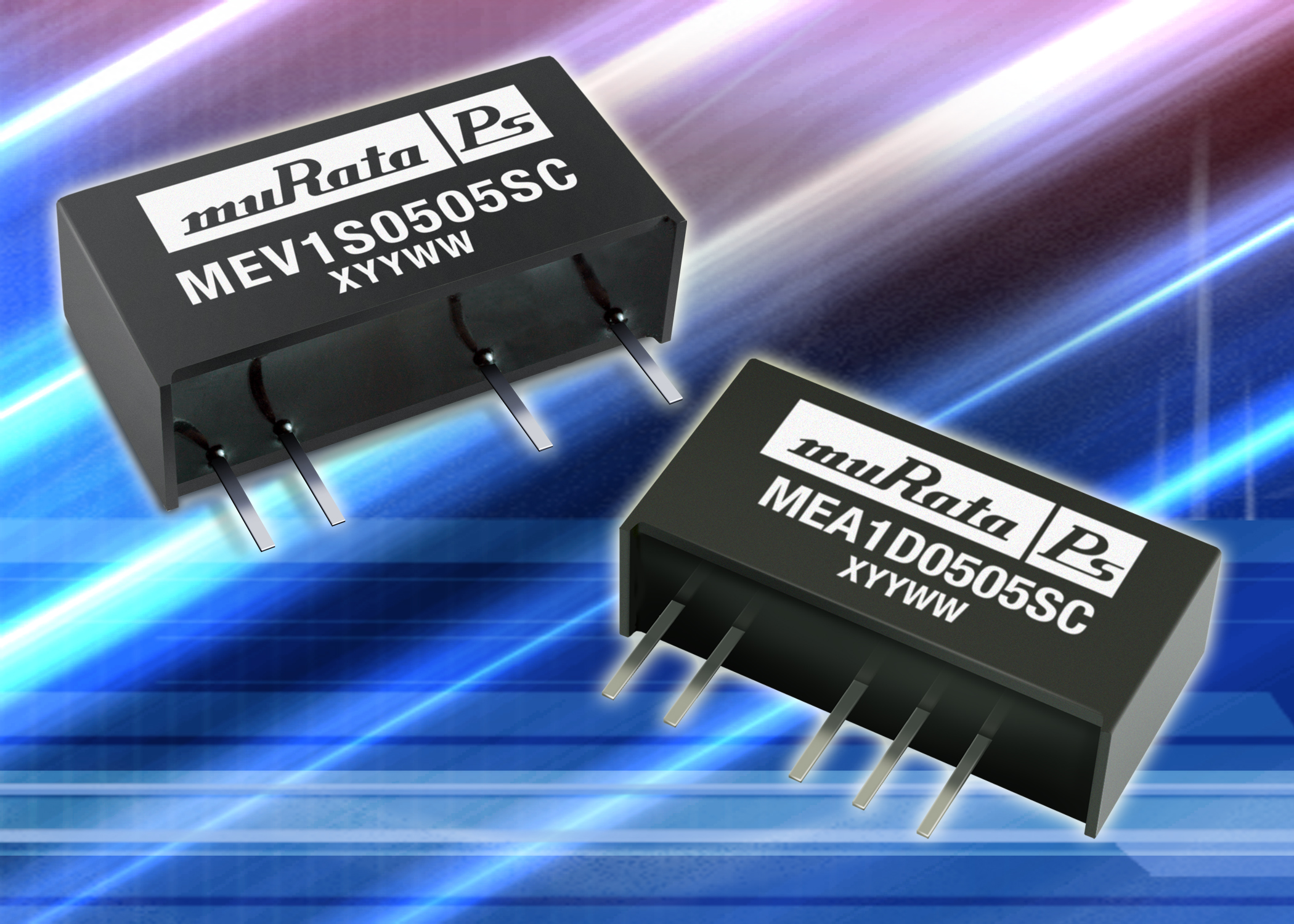

| New 1W DC/DC converters set new standards for efficiency, miniaturisation and reliability |
 |
|
MEA & MEV Series
- Typical efficiency from 84%, power density of 0.85W/cm3
- Load regulation performance of <5%
- Industry standard SIP 7 package
- Choice of single output 3kVDC isolation, and dual output 1kVDC isolation devices
|
MEA & MEV Series
dc-dc converters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
MEA Series
|
|
MEV Series
|
|
|
|
|
|
|
| Date: October 13, 2008 |

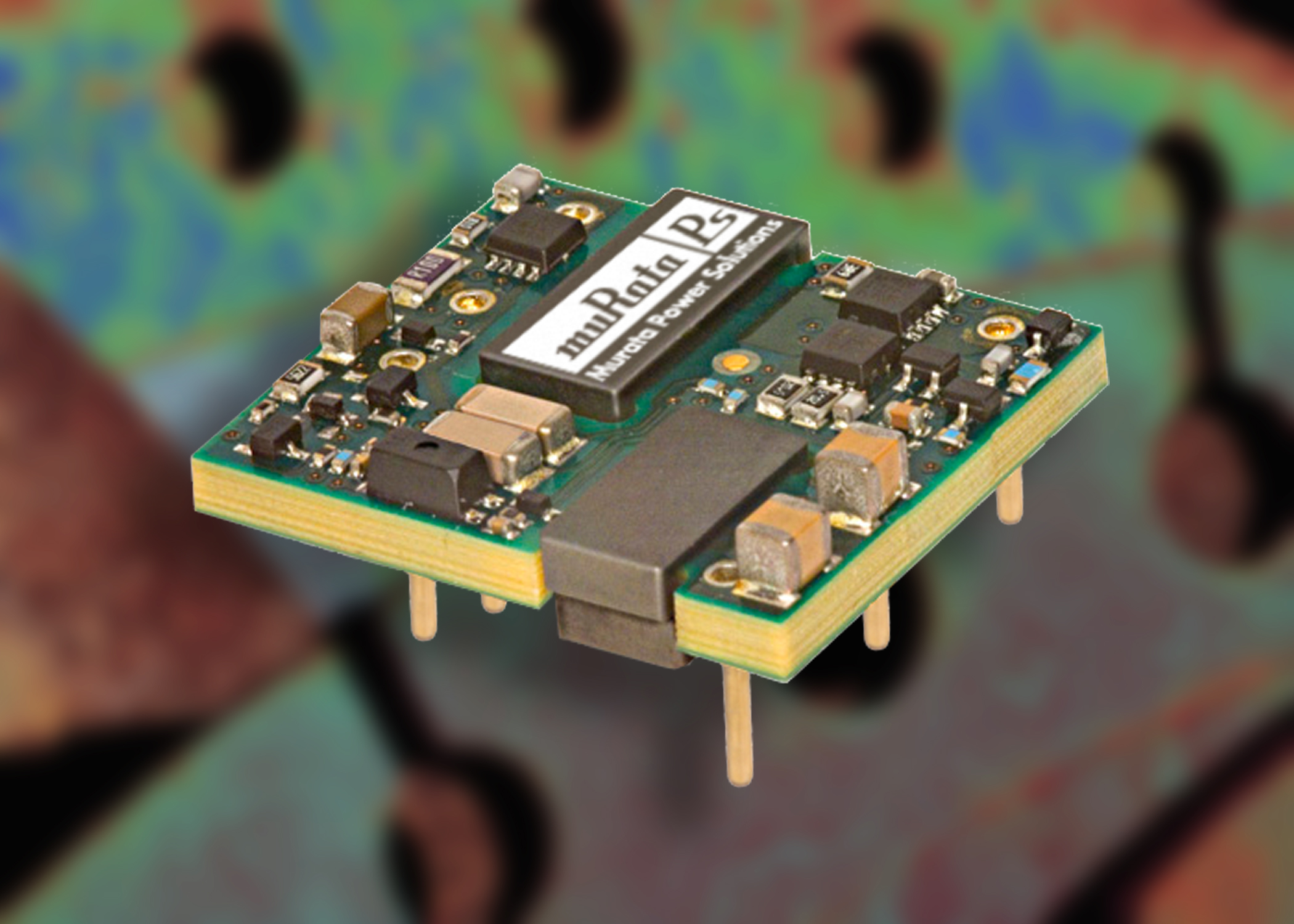

| Wide input DC/DC Converters deliver 15W from one square inch industry standard package |
 |
|
UEI15 Series
- 9-36VDC or 18-75VDC inputs
- Industry-standard package and pinout with PCB mounting
- Fixed output voltages from 3.3V to 15V
- Extensive self-protection and shutdown features
|
UEI15 Series
dc-dc
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Date: September 15, 2008 |

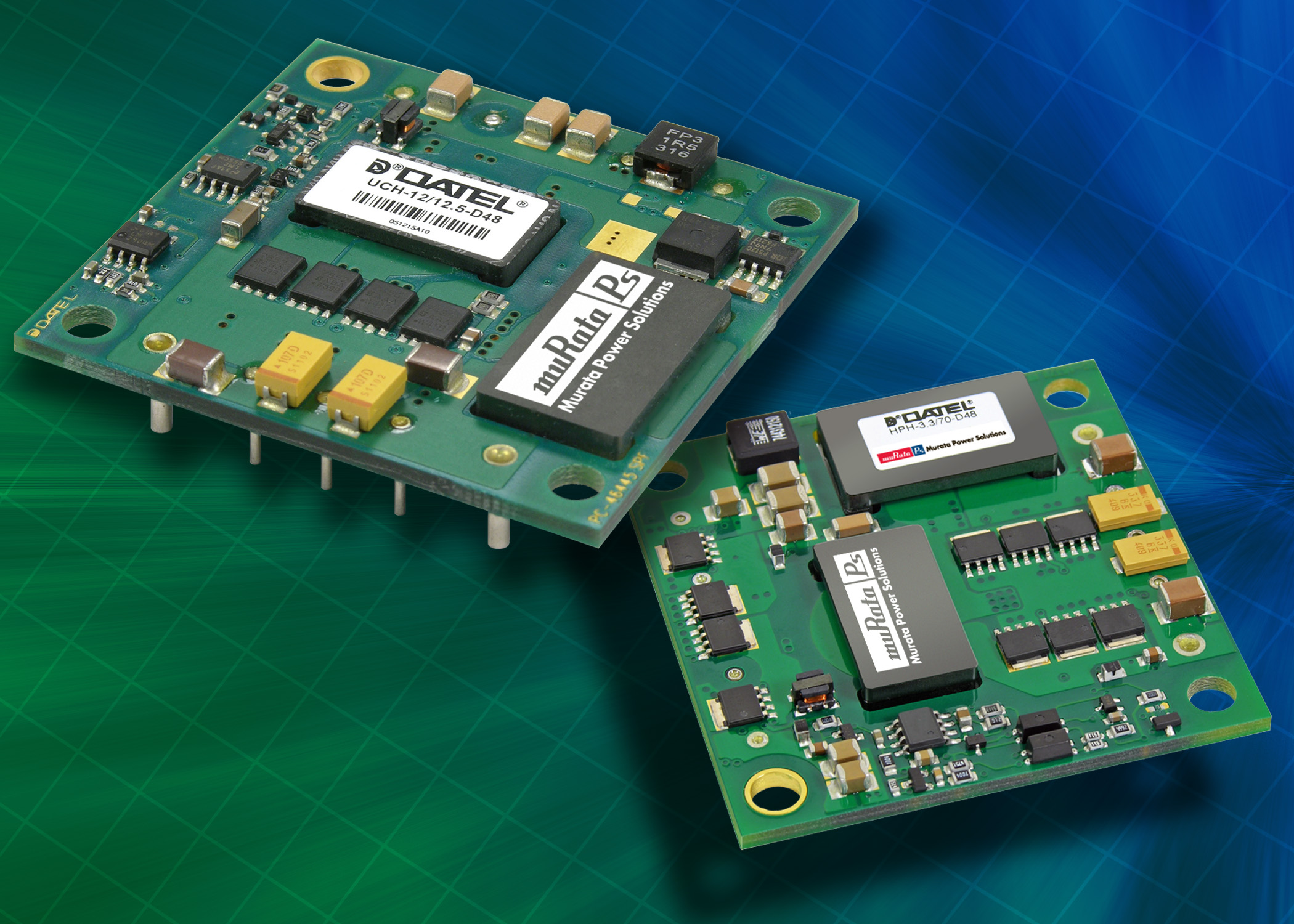

| Two new next Generation ranges of single output, half-brick, isolated DC/DC Converters. |
 |
|
HPH & UCH Series
- Two new series: HPH and UCH
- High power HPH series delivers up to 70A output current
- UCH series provides up to 150W output power
- Fully isolated to 2250VDC (BASIC); Safety approved
- Designs include full set of protection features
- Optional baseplate for thermally challenging applications
|
HPH & UCH Series
dc dc converters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
HPH Series
|
|
UCH Series
|
|
|
|
|
|
|
| Date: August 4, 2008 |

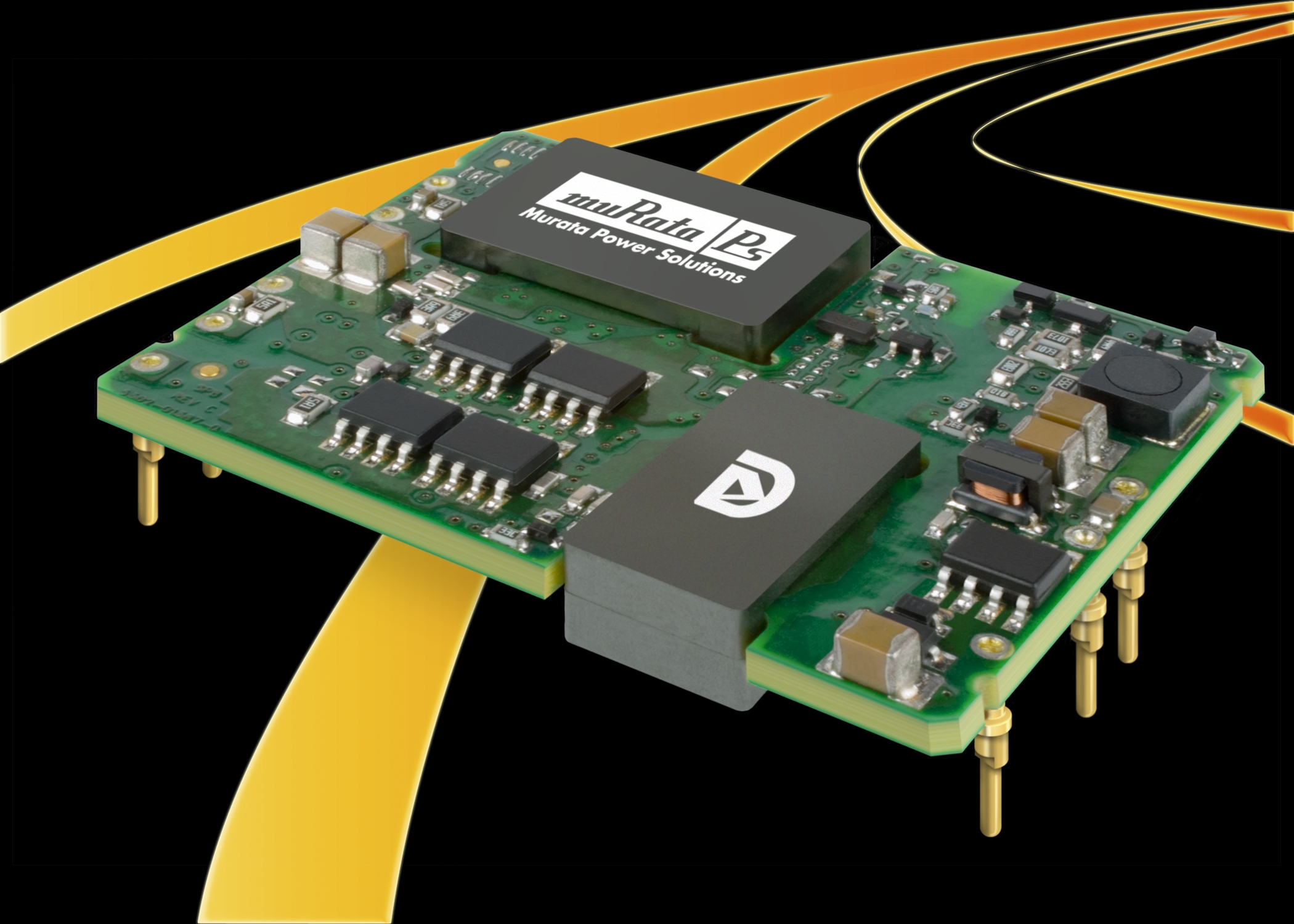

| DC/DC Converters with 4:1 input deliver 18A/60W regulated 3.3V output in 1.6in. x 2in. package |
 |
|
UEI Series
- 9-36VDC or 18-75VDC inputs
- Highest current from Industry-standard open-frame package and pinout
- Start up capability into pre-biased loads
- Extensive self-protection and shutdown features
- RoHS compliant and fully safety approved
|
UEI Series
dc to dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: July 18, 2008 |

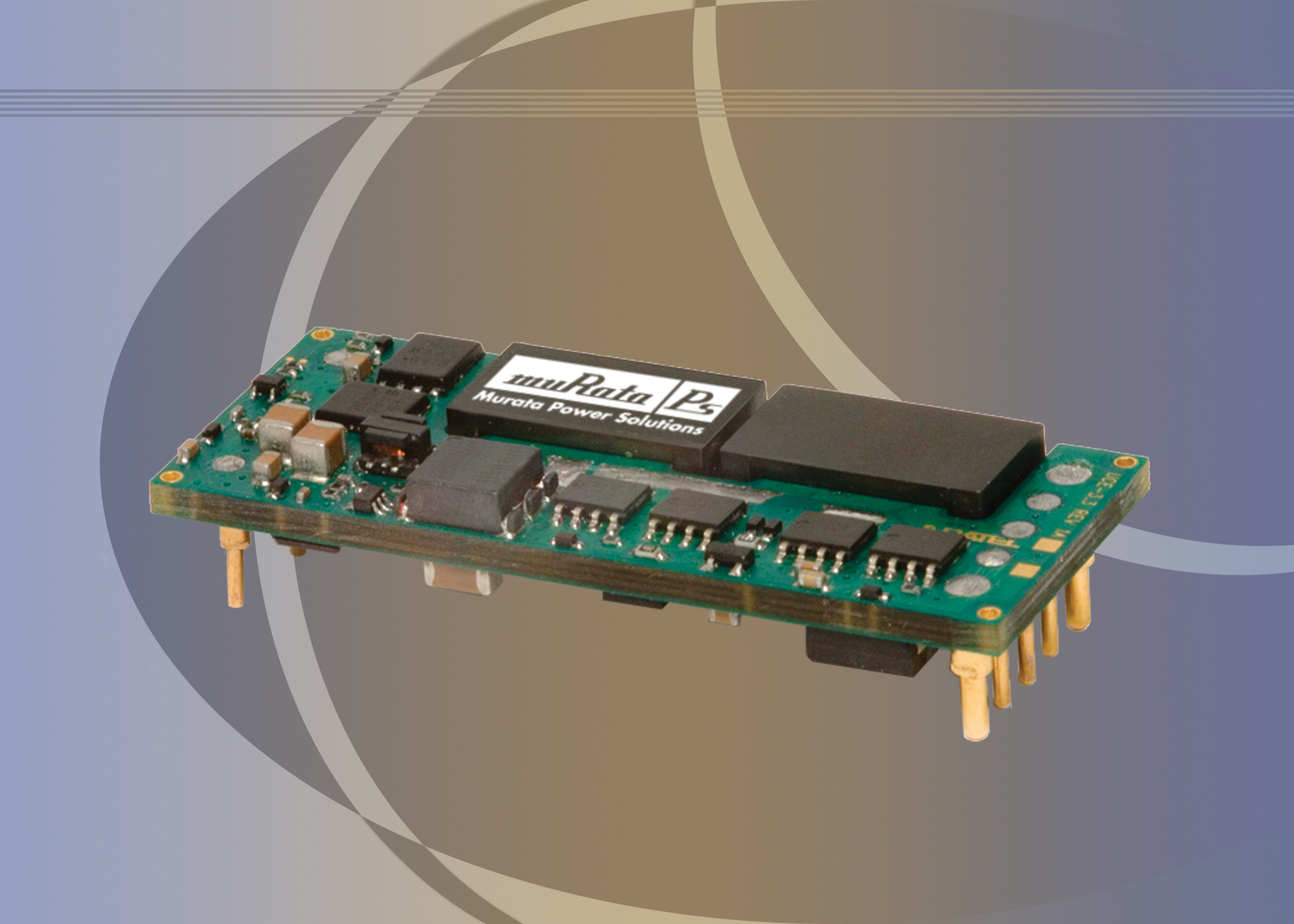

| Isolated, high efficiency DC/DC converter series gives ultra-high performance in a small package |
 |
|
UCE Series
- Industry standard eighth-brick pinout and package
- Choice of outputs between 1.5V and 12V, up to 100W output power
- Efficiency over 90%, isolation to 2250VDC (BASIC)
- Extensive self-protection and short-circuit features
|
UCE Series
dc/dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: July 11, 2008 |

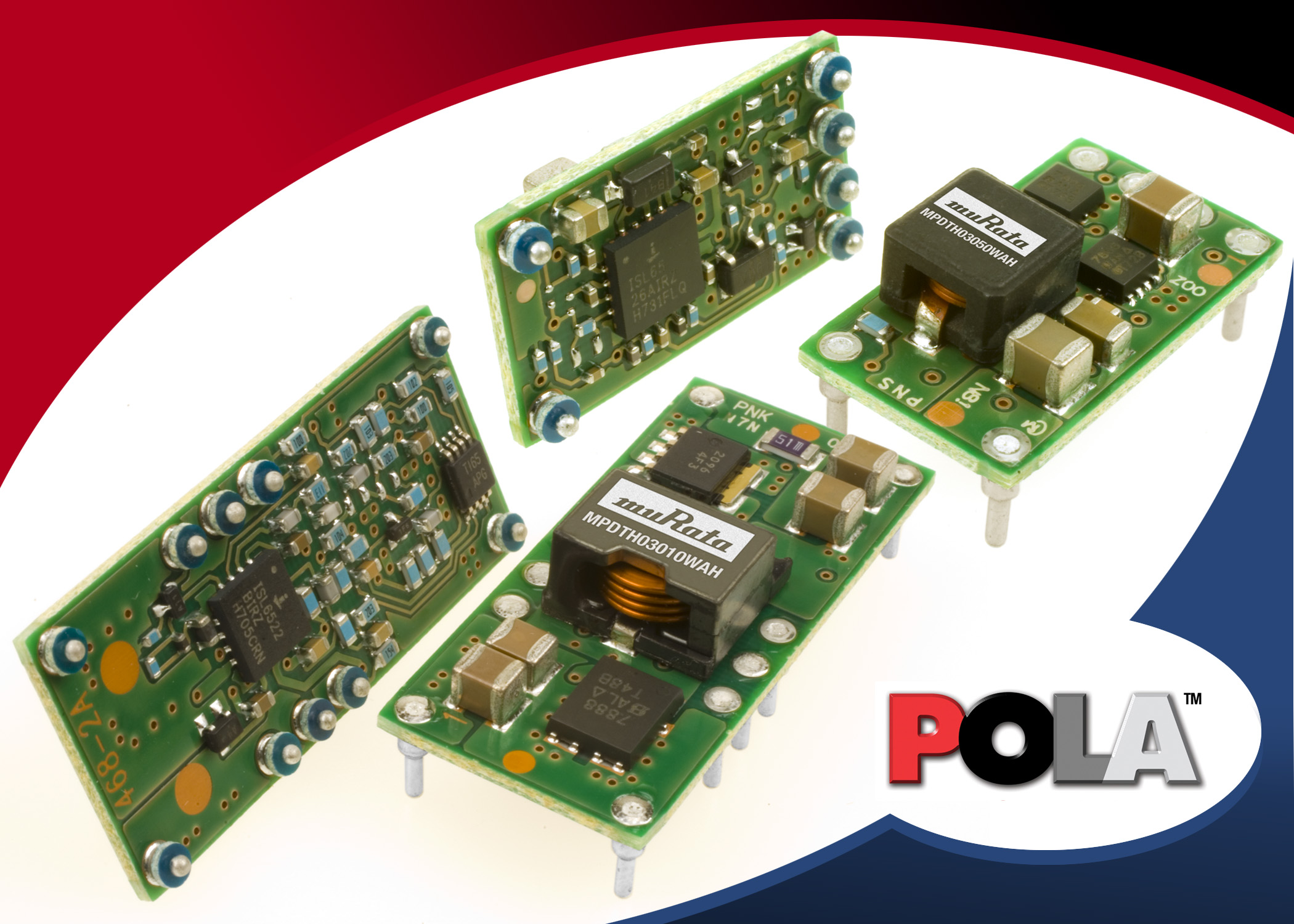

New POLA DC/DC Power Converters
offer designers
a
choice of 6A, 10A and 15A versions |
 |
|
POLA DC/DC Power Converters
- Auto Tracking Feature
- Choice of modules offering 3.3V, 5V and 12V input voltages
- Adjustable output voltage of 0.8V to 5.0V
- High Power conversion efficiency up to 95%
- Surface-mount and through-hole versions available
|
POLA
dc-dc Converters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
MPDTH***10 Series
|
|
MPDTH***50 Series
|
|
MPDTH***60 Series
|
|
|
|
|
|
|
| Date: July 7, 2008 |

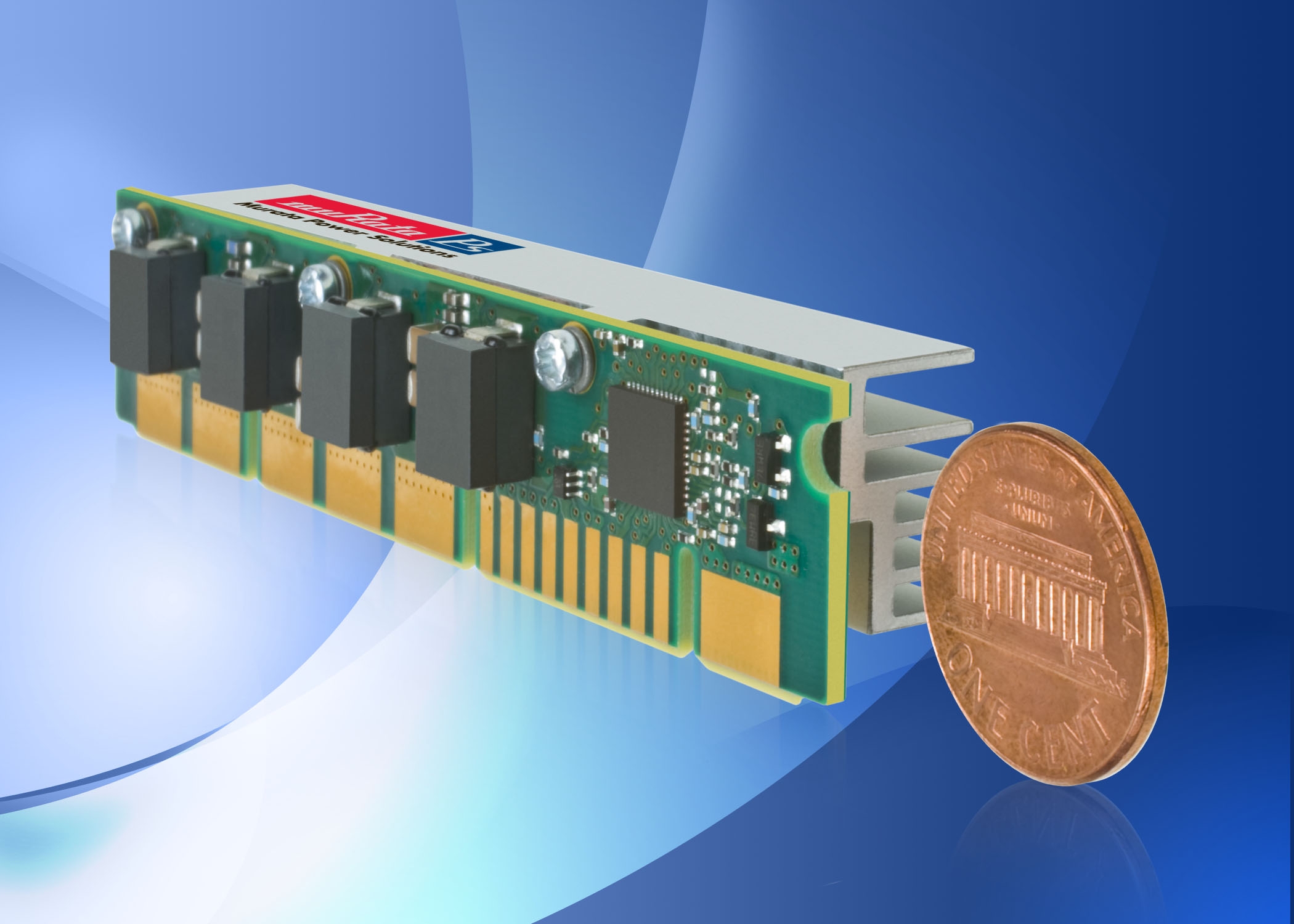

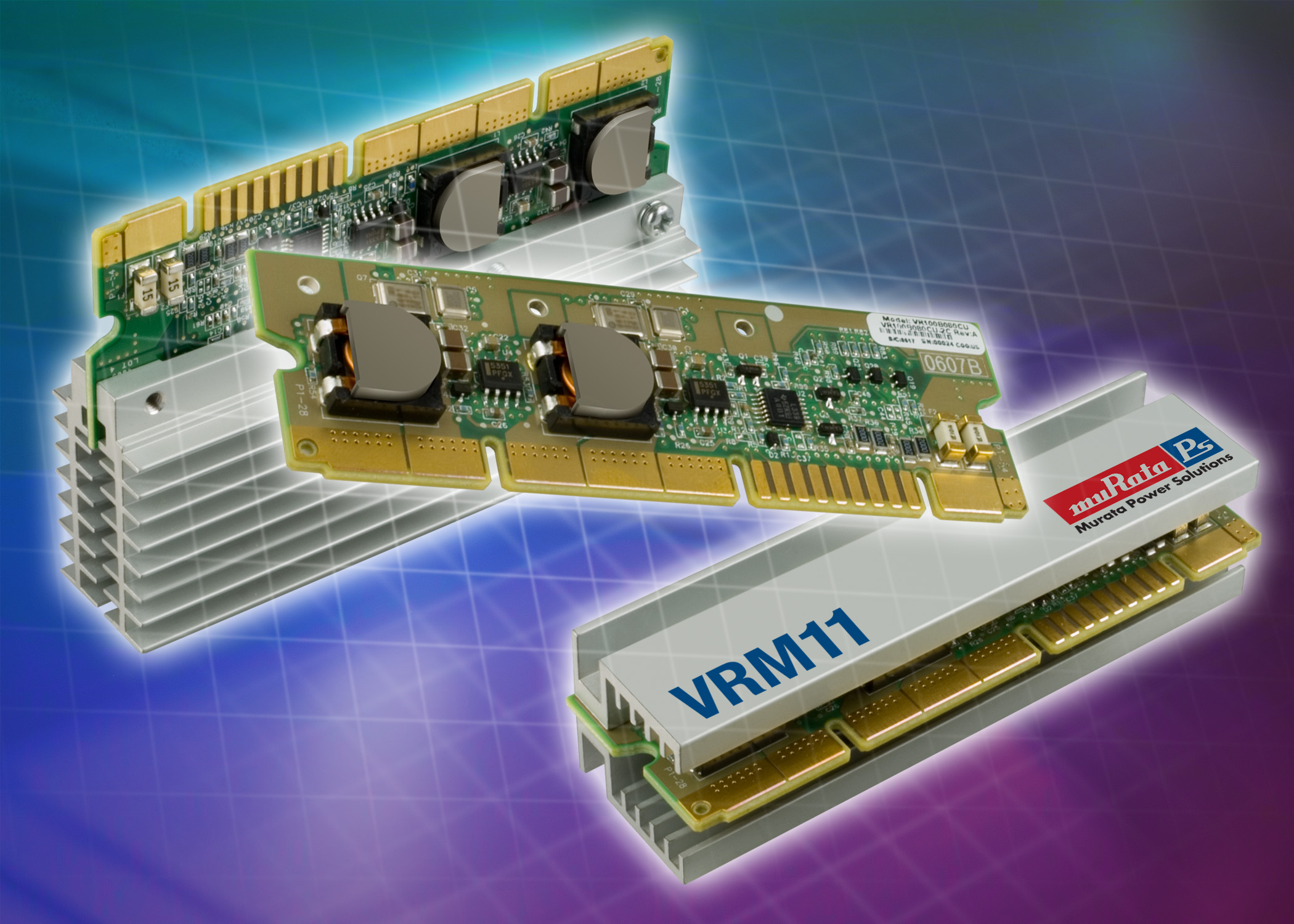

| Ultra-low profile 80A voltage regulator module has industry-leading installed height of just 0.807in (20.5mm) |
 |
|
VRM110 Series
- Low profile SIP ideal for space restricted applications
- 80A maximum output with DAC programmable output voltage
- Meets Intel® VRM 11.0 requirements
- 88% full load efficiency
|
VRM110 Series
dc dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: June 16, 2008 |

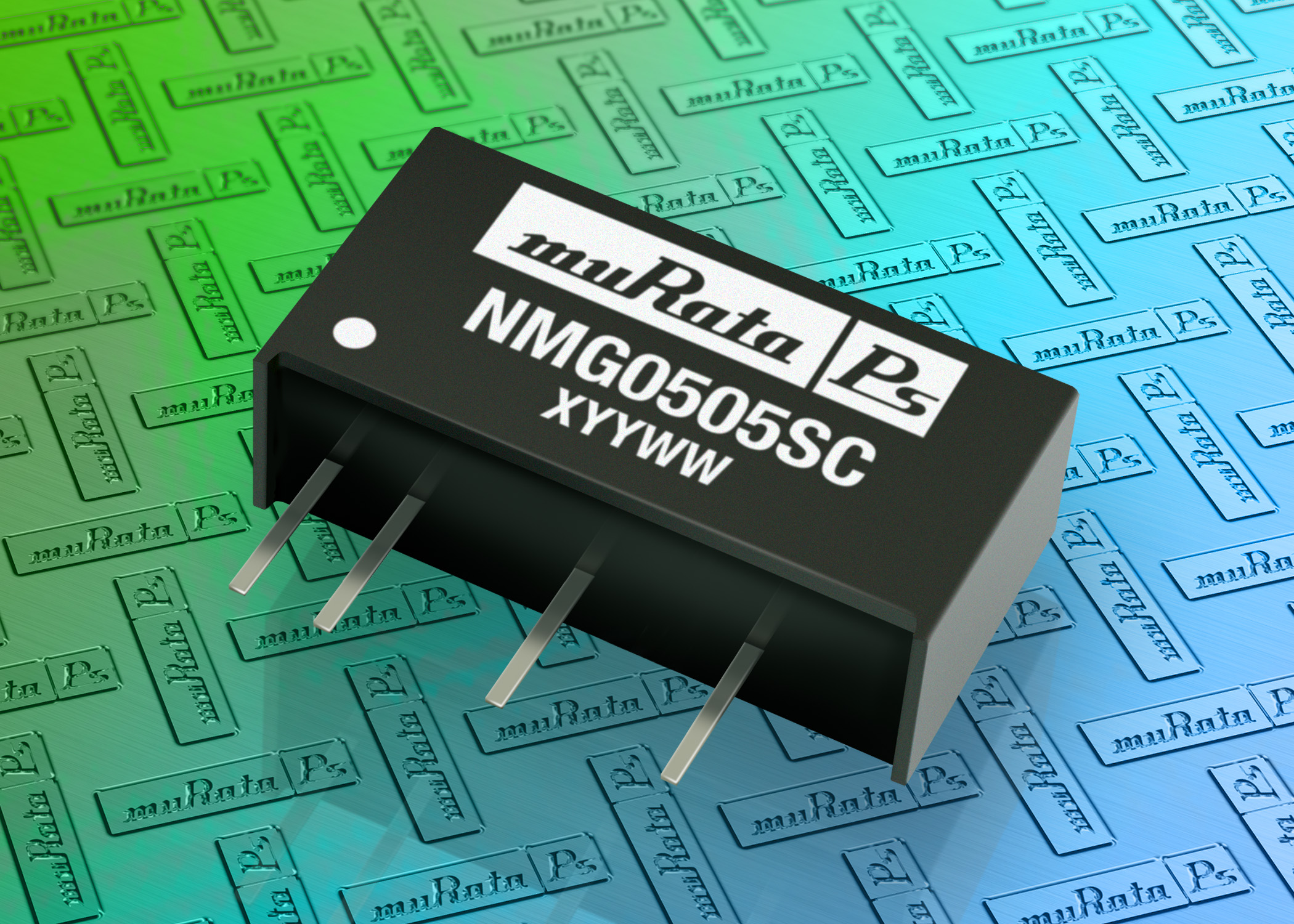

| Murata Power Solutions expands its range of high efficiency DC/DC Converters with introduction of 2W single output NMG series |
 |
|
NMG Series
- Industry-standard pinout, isolated 2W single output DC/DC Converters
- Typical efficiency up to 88%, 1kVDC isolation
- Wide choice of input and output voltages
- Full 2W performance across industrial temperature range
|
NMG Series
dc to dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: February 25, 2008 |

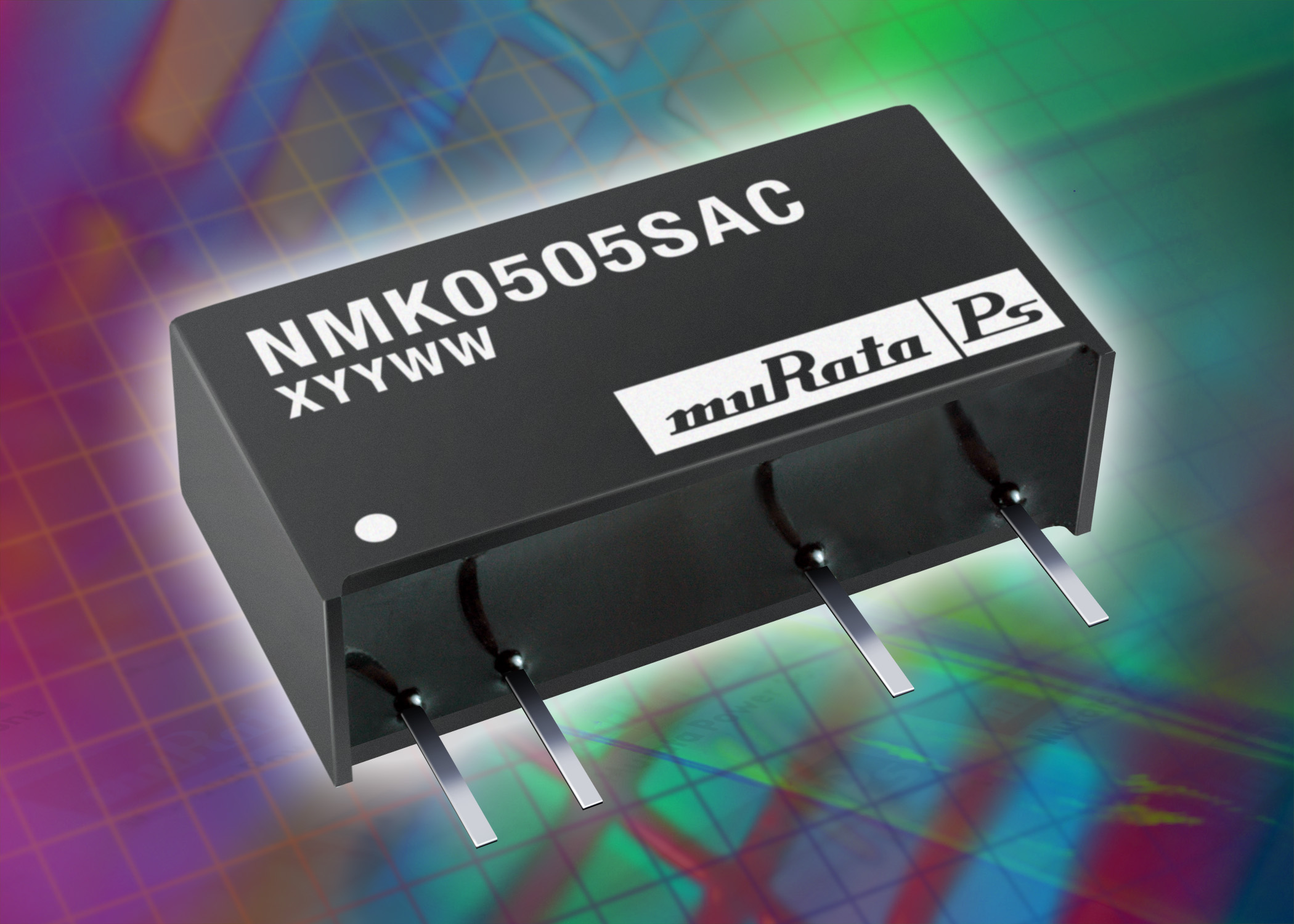

| Isolated 2W single output DC/DC Converter sets new standards in efficiency and load regulation |
| The RoHS compliant NMK series offers 3kVDC isolation (for 1 minute) and power density of up to 1.33W/cm3. |
 |
|
NMK Series single output DC/DC converters
- 89% typical efficiency (15V output), 7% output voltage set point accuracy
- Maximum load regulation 2.5% (15V output)
- Wide choice of input and output voltages
- 3kVDC isolation and power density to 1.33W/cm3
- Full 2W load performance across industrial temperature range
|
NMK Series single
output dc dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: January 22, 2008 |

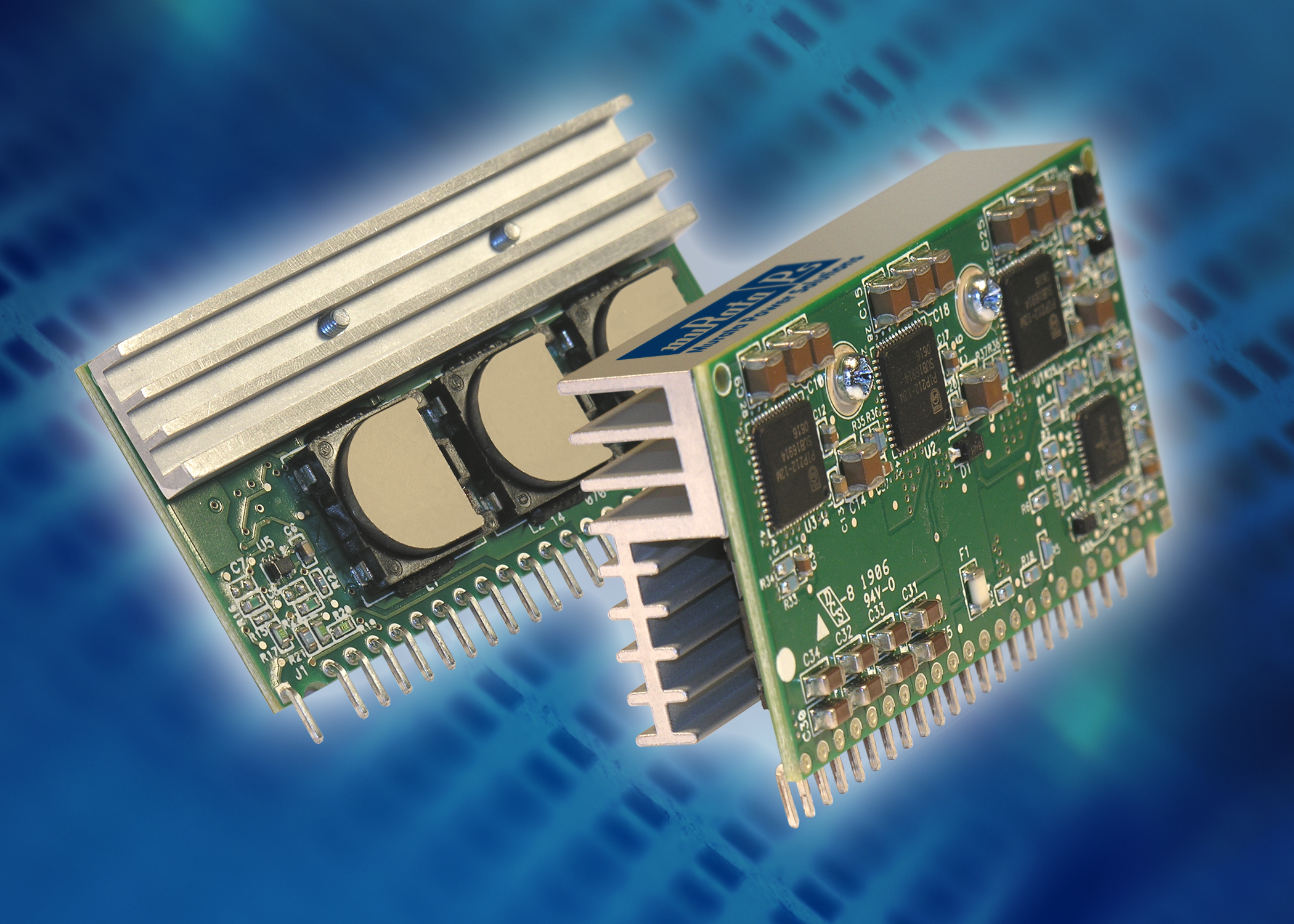

| DC/DC converters support DDR Memory applications |
| The 60A-rated VCN60BADJTU-1C and 70A-rated VCN70BADJTU-1C provide high efficiency, high bandwidth solutions for a wide range of applications such as computer equipment, telecommunications hardware, test equipment and industrial automation. |
 |
|
VCN60 and VCN70 Series DC/DC converters
- Small form factor with 1U height
- Programmable 0.6V to 3.5V output
- 50A/in3 current density
- 88% efficiency
- Soft Start Circuit
- Differential remote sense
- Power good signal
- Pre-Bias turn on
- Output enable
- Comprehensive safety
- over-voltage
- over-current
- over-temperature
- Powering DDR1, DDR2 and DDR3 memory
|
VCN60/70 Series
dc-dc converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: October 1, 2007 |

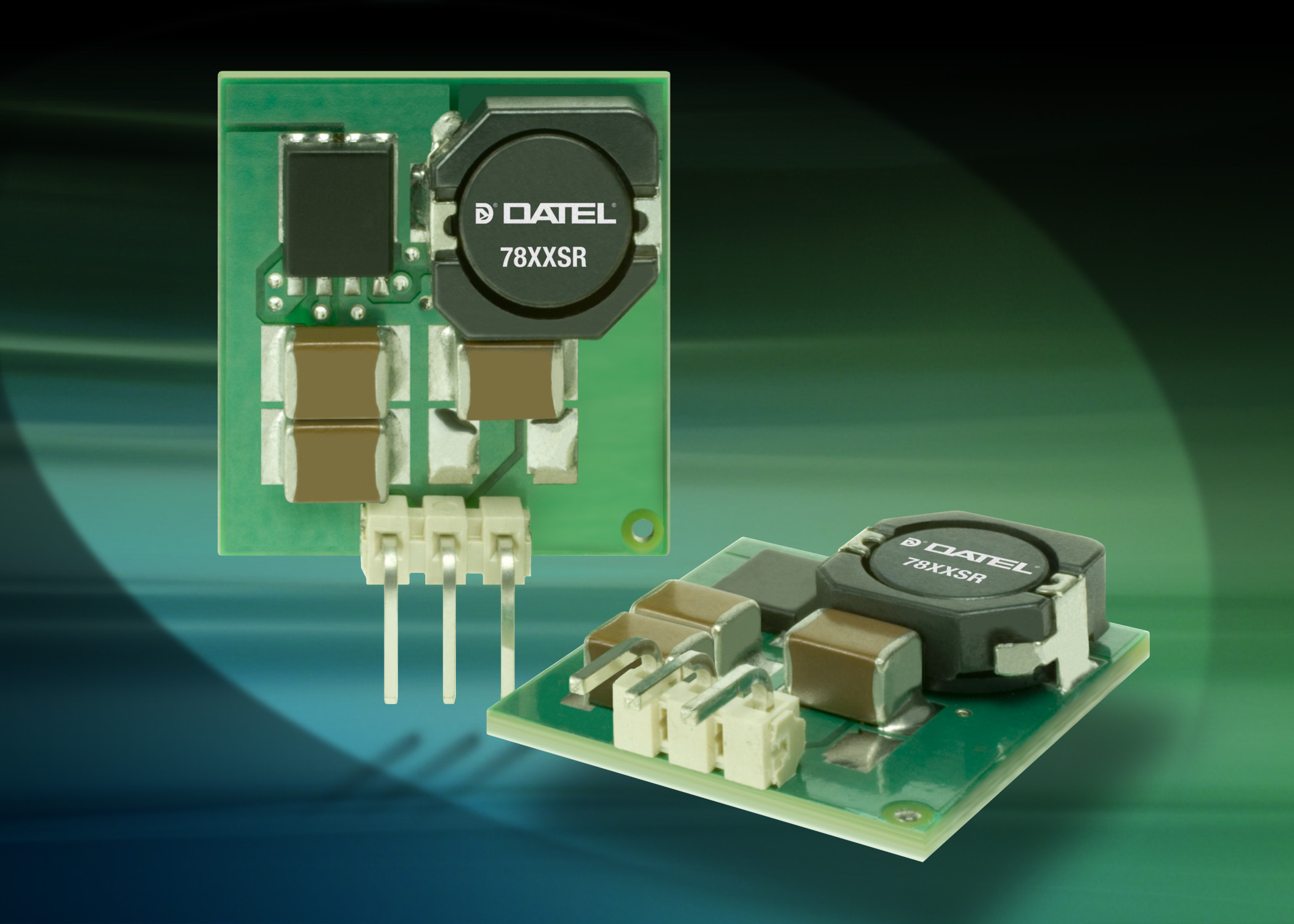

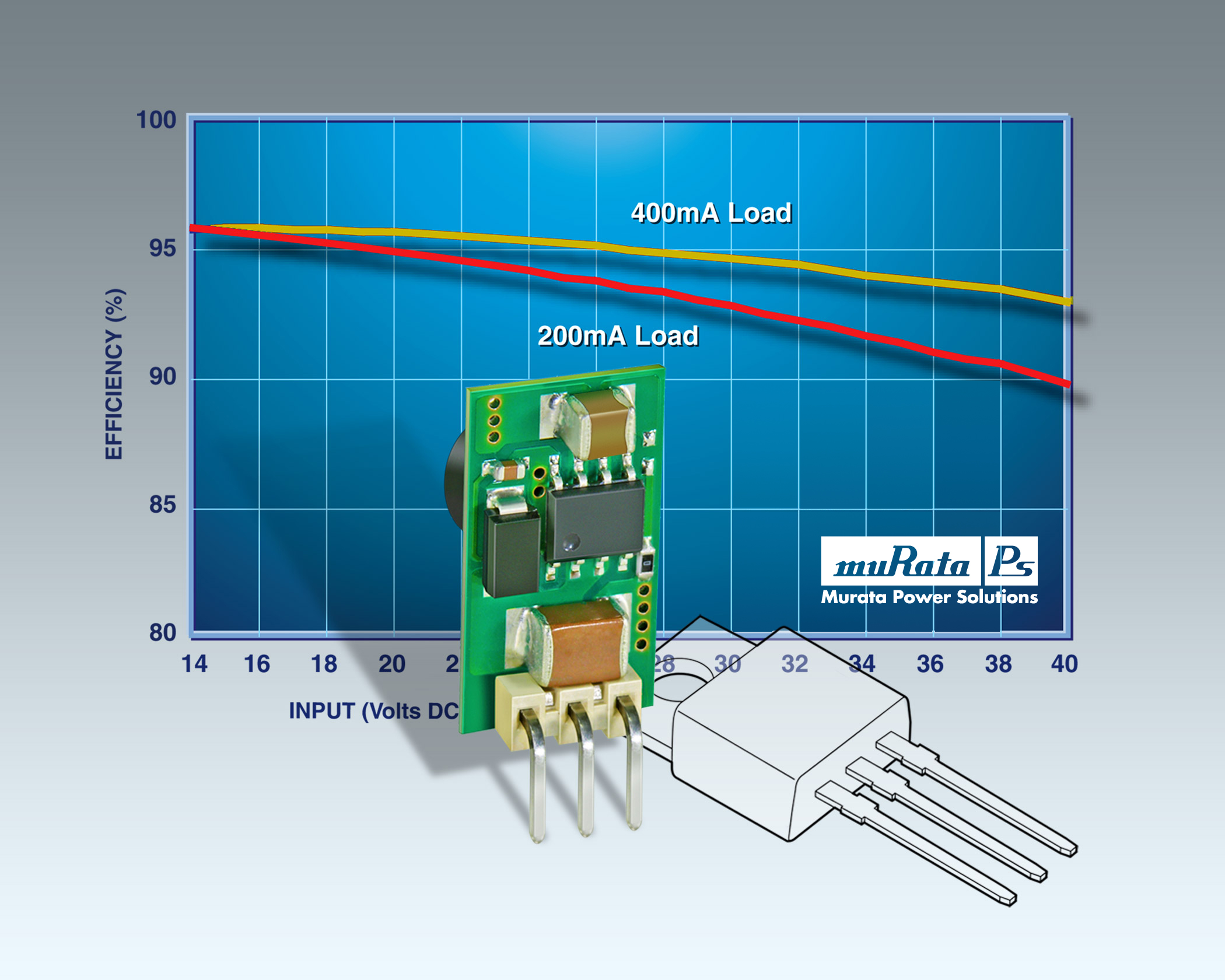

| 2 Amp, 3.3V & 5V Output, High Efficiency, Synchronous Switching Regulators |
| 78SR Step-Down Switching Regulators Provide High-Efficiency Drop-In Replacement For LM7805 & LM7812 Applications |
 |
|
78SR, 2 Amp Step-Down Switching Regulators
- Up to 95% efficiency- no costly heat sinks or fans required
- Wide 8- 32Vdc input voltage range
- Two package options:
3-pin vertical mount SIP
Low profile, horizontal mount SIP
- No external Input/Output filter capacitors required
- -40 to +70°C full load operation at 24Vin with no derating
- Excellent load (±0.25%) and line (±0.35%) regulation
- Low-cost upgrade for 78HT2, 78SR1, 78ST1, and PT5100 switchers
- Open frame design minimizes self-heating & pc-board footprint
- Low noise output for powering sensitive instrumentation
|
2 Amp Step-Down Switching Regulators
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: June 15, 2007 |
| 4:1 Wide Input, Highly Efficient 100W Quarter-Brick DC/DC Converters |
| For applications requiring wide range input, improved electrical and thermal perfomance
consider Murata Power Solutions new UQQ Series "Quarter-Brick" DC/DC Converters. |
 |
|

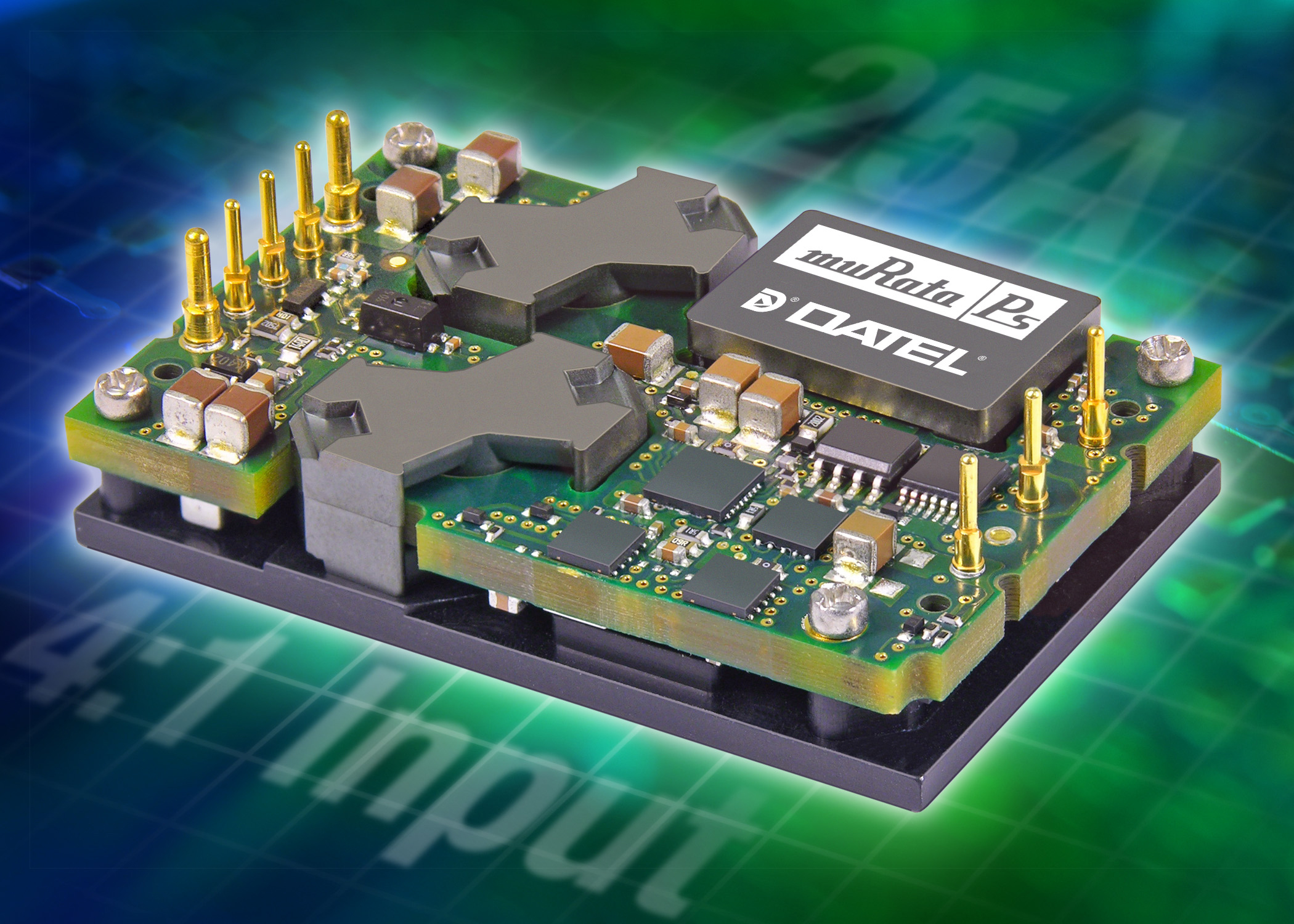

UQQ Series DC/DC Converters
- Wide range 9-36 Volt (12/24Vin nom) or 18-75 Volt (24/48Vin nom) DC inputs
- Five fixed output ranges, 3.3V/25A to 24V/4A
- Standard quarter-brick package and pinout
- 2250V isolation with 0.43"package height
- Extensive control and protection features
- UL/EN/IEC safety approvals and certifications
- RoHS compliant
- Interleaved synchronous-rectifier topology
- Ultra high efficiency
|
UQQ Series
Quarter-Brick DC/DC Converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: May 1, 2007 |
Miniature SIP Packaged Device is World's Smallest Safety Approved
1 Watt DC/DC Converter |
| The NMJ series is UL60950 recognized and suitable for applications where safety and miniaturization are of paramount importance. |
 |
|

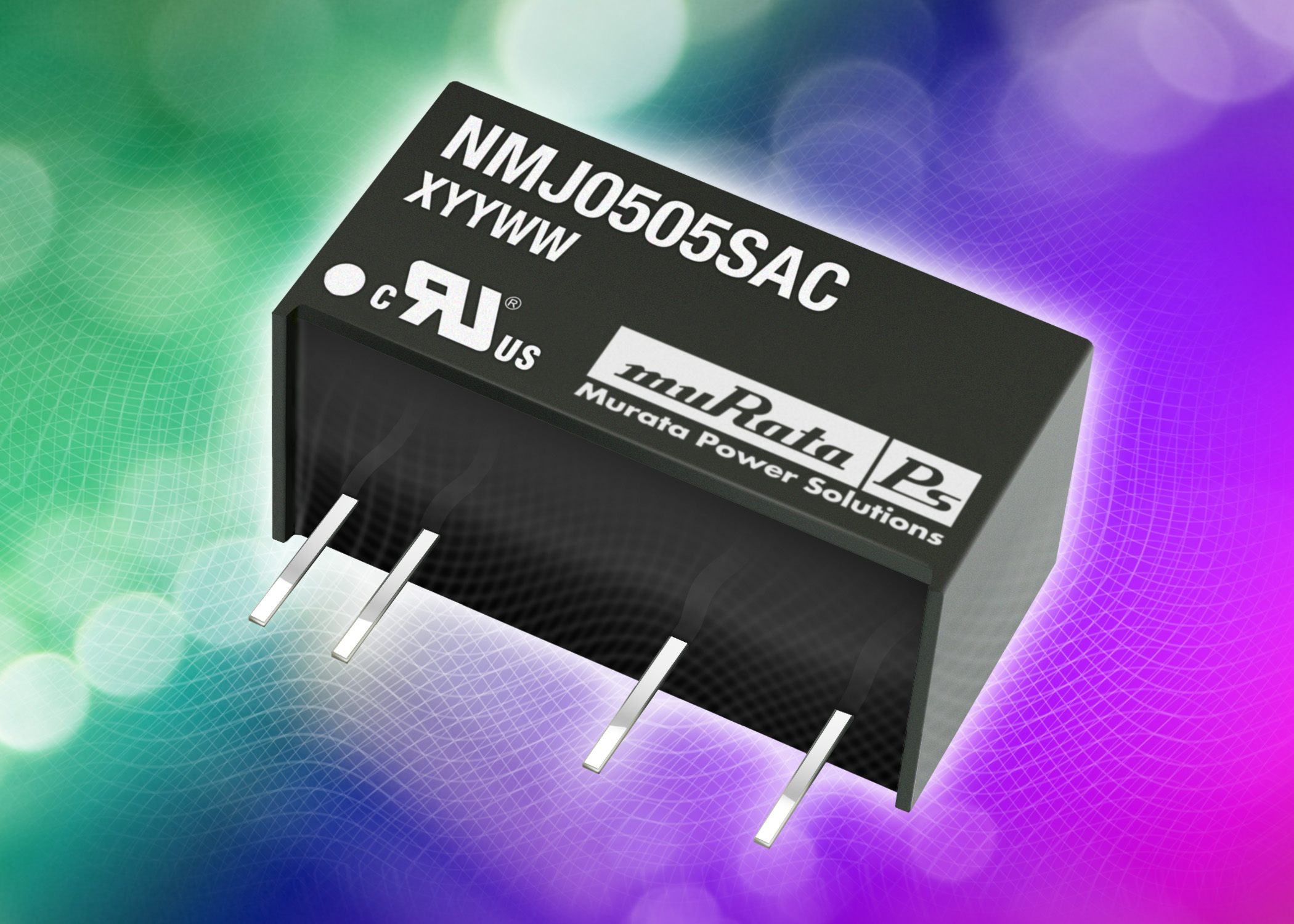

NMJ Series 1W DC/DC Converters
- RoHS compliant and UL60950 recognized
- Power density 0.42W/cm3
- Wide temperature performance at full 1 watt load, -40°C to 60°C
- Single and dual outputs
- UL 94V-0 package material
- Footprint 1.91cm2
- SIP package style; No heatsink required
- 5.2kVDC isolation
- 3V, 5V & 12V input
- 3V, 5V, 9V, 12V and 15V output
- Internal SMD construction
- Custom solutions available
|
NMJ Series
1W DC/DC Converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: November 16, 2006 |
| Fixed Conversion Ratio Isolated Converter
Allows Downstream Space and Cost Savings in IBAs |
| Fully compliant with Intel's VRM11.0 power specification and represents a proven power solution. |
 |
|
VRM11.X family of DC/DC Converters
- Multiple power levels and form factor options
- Full compliance with Intel VRM11.0 power specification
- Maximum flexibility for designers
- RoHS compliance
- No load line models for traditional regulation requirements
|
VRM11x Family
View high-resolution image |
| |
|
|
| Data Sheets |
|
VR110B080
|
|
VR110B150
|
|
VR11CB080
|
|
VR11CB150
|
|
|
|
|
|
|
| Date: October 18, 2006 |
| DC/DC Converter Family Meets Next-Generation Intel Processor Specifications |
| Isolated Eighth-Brick Bus Converter |
 |
|
EUS34-096 Isolated Bus Converter
- RoHS compliant
- 48Vin, Isolated, 5:1 fixed conversion ratio
- 240W output at 38 Vin, 55°C, 200 LFM
- 300W output at 48 Vin, 55°,C, 200 LFM
- Industry Standard 1/8 brick footprint
- Remote enable (primary side, positive or negative)
- Over-temperature, over current protections
- Direct parallel operation for higher power
|
EUS34-096
Isolated Bus Converter
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: August 31, 2006 |
| Quarter-Brick Converter Enables Cost and Space Savings in Intermediate Bus Architecture Applications |
| Industry standard quarter brick footprint to support IBA for powering multiple downstream non-isolated point-of-load converters. |
 |
|
QUS40-096 Series DC/DC Converter
- RoHS compliant
- 48 VIN, Isolated, 5:1 fixed conversion ratio
- 300W output at 38 VIN, 55ºC, 200 LFM
- Industry standard ¼ brick footprint
- Remote enable (primary side, positive or negative)
- Over-temperature, over current protections
- Direct parallel operation for higher power
|
QUS40-096 Series
DC/DC Converters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: August 2, 2006 |

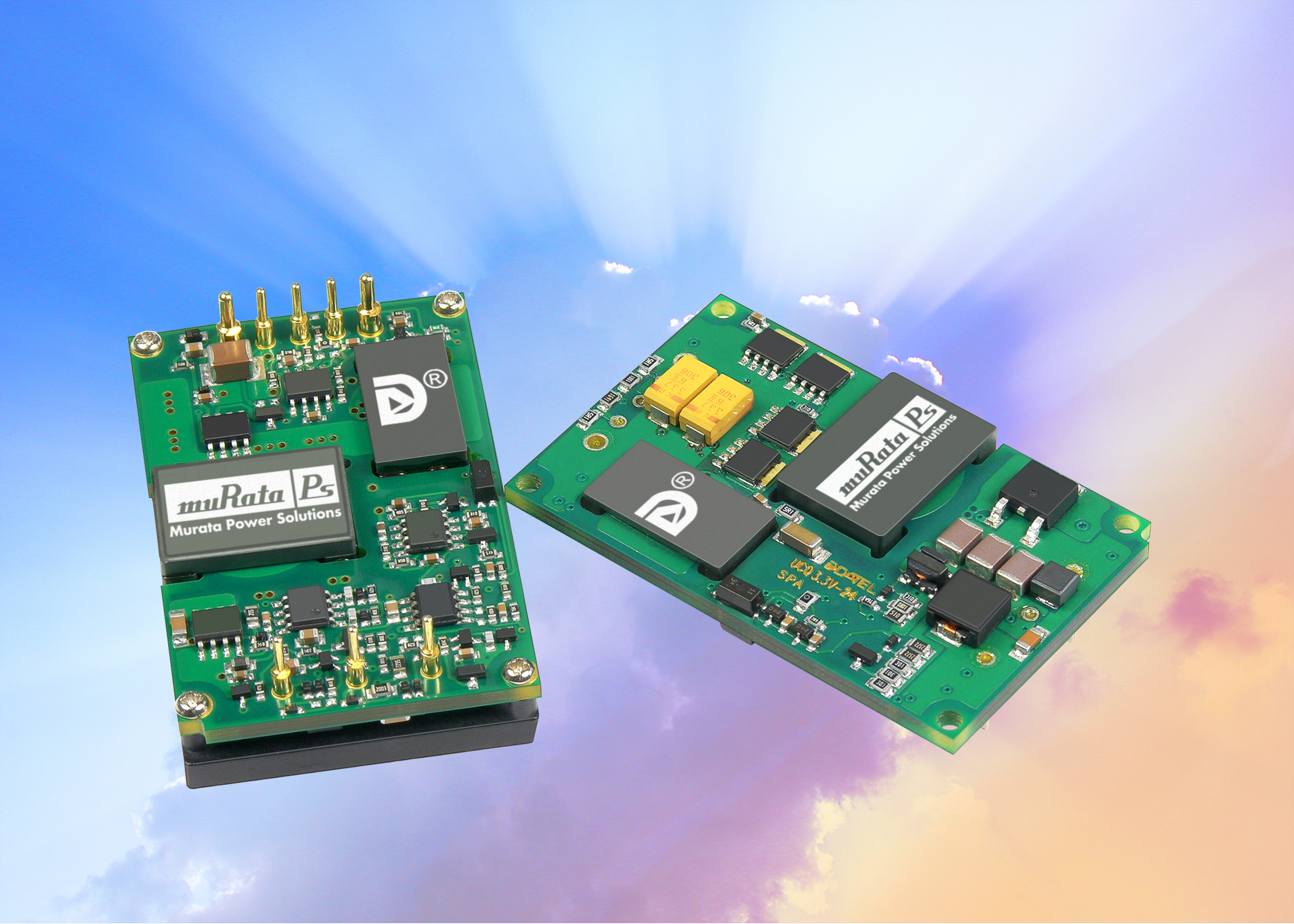

| Quarter-Brick UCQ Series DC/DC Converters Provide Economical Solution with Outstanding Thermal Performance |
| DC/DC converters excel in applications such as telecom and datacoms equipment, base stations and embedded systems. |
 |
|
UCQ Series DC/DC Converter
- Standard quarter-brick package/pinout
- Low cost; Low profile, 0.4" (10.2mm)
- 24V or 48V nominal input
- Outputs: 3.3V/30-35A or 5V/20A
- Interleaved synchronous-rectifier topology
Ultra high efficiency
No output reverse conduction
- Outstanding thermal performance
- On/off control, trim & sense functions
- Fully isolated, 2250Vdc (BASIC)
- UL/EN/IEC60950 safety approvals
- Qual/HALT/EMI tested
|
UCQ Series
DC/DC Converters
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
| Date: June 27, 2006 |
| 5V and 12V Versions Broaden Offering of Low-Profile Isolated Output DC/DC Converters |
| Isolated 3W single and dual output DC/DC converters |
 |
|

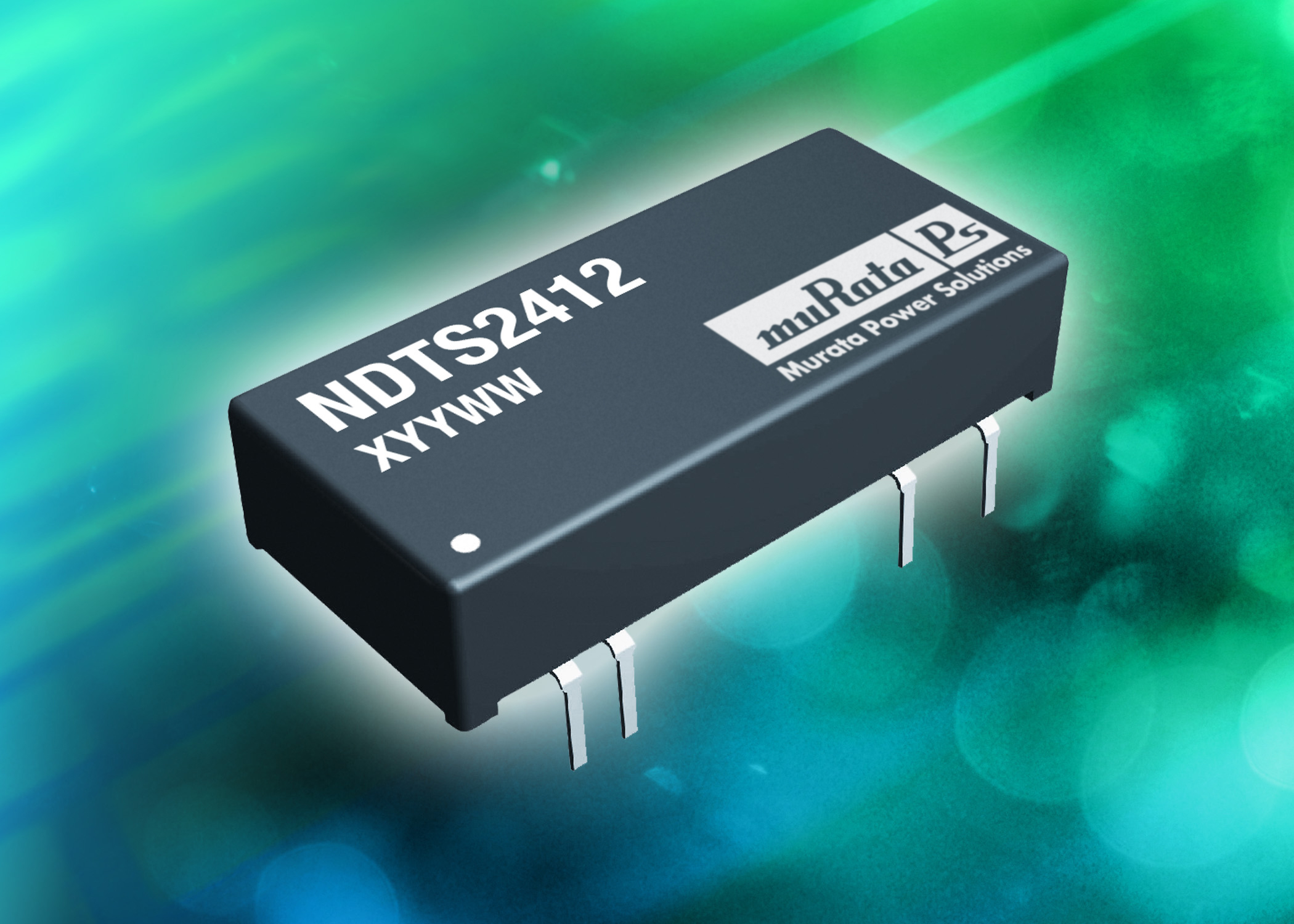

NDTD / NDTS Series DC/DC Converters
- RoHS compliant
- Industry standard footprint
- Power density 0.90W/cm3
- 2:wide input range
- Short circuit protection
- Low profile 24 pin case; Footprint 4.73cm2
- Operating temperature range -40ºC to 85ºC
- 1kVDC isolation
- 5V, 12V, 24V & 48V Input
- 3.3V, 5V, 12V & 15V Output
- Internal SMD construction
- Fully encapsulated; No heatsink required
|
NDTD & NDTS Series
DC/DC Converters
View high-resolution image |
| |
|
|
|
|
|
|
|
|
| Date: June 26, 2006 |
| High-Efficiency, Step-Down Switchers Deliver More Current than LM78XX Linears |
| 95% Efficient, drop-in replacements supply 3.3/5/12V @ 400/500mA to +70ºC w/o air flow or heat sinks |
 |
|
New 78XXSR Series Switching Regulators
- 3-pin SIP packages fit LM7805 and LM7812 TO-220 footprints
- <0.1 sq. in. board space; No I/O caps required
- 260kHz switching design delivers:
+7.5-36V inputs
3.3V (1/2 Amp), 5V (1/2 Amp), 12V (400mA) outputs
80-95% efficiencies
Full-power operation to +70°C w/o heat sinks
Full line (±0.2%) and load (±0.3%) regulation
Low 3mA quiescent current
10mVp-p output noise
- Short-circuit protection
- Ideal for powering precision instrumentation from noisy, unregulated 9/12/24/28Vdc supplies
- Prices start at $4.95 for huge quantities
|
78XXSR Series
Switching Regulators
View high-resolution image |
| |
|
|
| Data Sheets |
|
|
|
|
|
|
|
|
Follow us on Twitter
